Difficulty Level: Advanced

Hard: 80% - 1 votes

Firefly Lantern wedding centrepiece

Firefly Lantern wedding centrepiece

I got married a few months ago and I thought that planning a wedding wasn't already stressful enough and decided that I wanted bring some of my geekery to the reception and build all of our centerpieces. I was thinking of doing something like some of the firefly LED jars I saw online but my wife had the idea of having some kind of old fashioned lantern so I decided to merge the two ideas together to build a firefly lantern centerpiece with several feature that I thought would make it stand out. The base for this project was the following criteria: Cheap to build (I would need 18 of them and the wedding costed enough as it was) Small circuit board (cheap to produce) Visually striking without being over stimulating (people had to eat while looking at them all evening) Fit the wedding color theme and look I used a very nice and cheap lantern from ikea that was available in several color. Our wedding color theme was coral and gold and I did not think any of the available color were too fitting so I went with the unpainted silver lantern and painted them gold to match the rest of the wedding theme. I played with the different firefly lantern animation code that are available online and settled on a version developped my Xander Hudson (http://www.instructables.com/id/Jar-of-Fireflies/). The reason I chose this particular one is that I was impressed with the care with which Xander modelled the firefly light pattern using concrete research data on firefly behavior and I tought this one looked much better than some of the other firefly animation code found online. The animation pattern seemed much more relaxing and realistic compared to the other that would just randomly flash one of the LEDs and it was using an attiny45 microcontroller which I already had in my parts bin. I started by doing a prototype on a breadboard to make sure everything would work the way I intended. The hardest part was soldering the very tiny 0603 SMD LEDS to the the very thin enamel wire. I normally never use enamel wire as I find them to be really hard to use but in this case they were the perfect choice as they can be very thin and could be bended without too much risk of breaking. The problem with enamel wire is that the insulation is not a typical plastic insulation, it's basicly just a very thin coat of enamel glue so removing it is kinda tricky. Some people sya the best way is to burn it with a lighter but for me it never produced clear result. What I found worked for me was to take a very sharp blade and scrape away the insulation while slightly turning the wire to remove most of it on all side. A single CR2032 button cell batery would be used to power up the circuit. Once I was satisfied that it was working and that the firefly animation would be nice and not overstimulating, I went ahead and started to design my custom PCB. There was already a PCB available online for this circuit but I found it to be way too big. It was made to fit a mason jar and a big PCB cost much more to produce in small batch. Size of the circuit was also an issue so I re-designed my own and made it as small and self contained as possible to facilitate assembly. I also stumble upon yet another firefly jar project but this one had a fun added feature that would make the firefly react to a tap on the glass using a piezzo so I also added that in my first PCB revision but I ended up abandonning that idea as I had difficulty making it work and I found the firefly animation pattern to be less interesting than the original one from Xander. All wasn't lost tho because I had made the board in a way that I could still use it without the piezzo with the code I originally intended to use. Everything was working properly but as it is often the case with the way I work, I don't plan too much in advance and have many ideas while I am building things and so I started wanting to add more feature to complicate my life even mores. The lanterns I chose to use had nice little stars cut through it's metal top and tought that it might look nice to have light shine through those cutting. I had recently started playing around with WS2812 RGB LEDs (also knows as Neopixel) which are super simple to use, are very cheap and require very minimal wiring. So I went back to my prototype and tried to implement the idea using a single WS2812B RGB LED. I tested my code first on my arduino and used the colorpalette demo of the FastLED WS2812 library and used a color palette reminescent of coral so that that would fit with our wedding color theme. Once I was satisfied with the effect, I transfered the project to a attiny85 to keep the project's final size to a minimum since I was planning of fitting everything inside the lantern and tested it inside the lantern to get a better idea of the effect. Also, considering the added microcontroller and RGB LED that was added to the project, I felt that the CR2032 button cell battery was no longer appropriate to power up this project. I replaced it with a spare Nintendo 3DS battery that I had on hand. That kind of battery was much more powerful, rechargeable and still thin enough to be contained the lantern. I did not bother yet with adding a way to charge the battery and just charged the battery using a separate charging circuit for the meantime and planned on wiring a lipo battery charger later on. But with everything seemingly working as I intended, I went ahead and redesigned my custom circuit board to incorporate the new centerpiece's feature. I also realised that the light shinning inside the lid would not be as noticeable as I wanted them to be and that I needed some kind of light difuser to make them nicer and more visible. I used a type of crafting paper which is very similar to waxed paper and put a piece behind every stars on the lid but I feel that pretty much any paper would work as long as they let some light pass through. I also decided to add yet another feature to the centerpiece after finally deciding what would be in the center of the lantern. I was planning of having a rose in the center and I tought it would look magical to have it glow so I added connections and component for an extra LED in case I would go with this idea. My second custom PCB revision came up even smaller than the original and as a result, very cheap to produce. You can see side by side with my first revision.   The reason why the second board revision have this weird shape is because I was planning on using an already made lipo battery charging PCB and was planning on directly soldering both board together but I ended up messing up my dimension and the connection were not lining up properly so they were left unused. I ended up not having time to work in the charging circuit so I made them one time use. Wit hall the work that went into them, I didn't want them to become paper weight and I figured that I would re-open some after the wedding to add the missing charger.   I managed to find the perfect flower to add to the center of the lantern. I bought it a Dollarama, a Canadian store that sell most of it's product for around a dollar. It was a synthetic white rose made out of foamy material with a bit of glitter on the petal. It looked very realistic and it had the perfect material as I could shine my cellphone flash through the material. I removed the flower bud from the stem, drilled a hole in in the bottom and inserted a LED I had previously wired up in the center of the flower before sealing it with hot glue.     I tested again and was very pleased with the result!   Adding this extra LED was an aftertought so I did not try to animate the lighting in anyway. I tought that a breathing effect of slowly lighting on and then slowly dimming down (like on some Mac laptop) would have been nice but at this point I was pressing with time and I tought it might be too much to add considering all the other effect that I was adding to the lantern. Now that all my idea seemed to be working out, it was time to assemble all of my centerpieces. It turned out to be a real nightmare as I waited far too long to start building them and started way too close to the wedding date. Soldering the microscopic SMD LEDs took ages as there were so many to do. I had eighteen lantern to produce, each of them with six SMD LEDs that needed to be wired with two hair thin enamel wire cut to the correct lenght and have their insulation stripped to allow for soldering. That's 216 individual wires to solder to microscopic parts and that is without counting the added wiring for the flower LED and soldering the various parts on the eithteen PCBs! I grossly under evaluated the time it would take and had to work non stop in the two week preceeding the wedding. In fact I finished assembling them a day or two before the wedding! I removed each glass panel from the lantern by unclipping them and then removed all the labels with some glue remover (Googone) before spray painting them gold to match the wedding color theme.   One of the problem that I had was figuring out a way to make the circuit hold inside the top of the lanter. I tought of using thin piece of wood wit hsomekind of reatiner on the side but I was getting pressed with time and I decided to have the circuit board and the battery mounted with glue on a piece of cardboard that I cut to size. It look a bit cheap but I was running out of time and needed to get it done. Using cardboard, while unprofesionnal looking, allow me to force insert it inside the top even with hte bulk of the battery sticking out.    After painting, I started glueing the LED flower that I had pre-wired in the center, ran the wire on one of the side, connected it to the mounted PCB and put the cardboard insert inside the top of the lantern making sure everything was working before sealing it by gluing the cardboad stock to the lantern's top. I still needed something decorative around the flower, something I did not figure out until the last minute. I had a few idea ranging from pebbles, colored gravel, glass stone to simulating water with epoxy. But in the end, I went with green dried moss. It was very cheap, easy to fix inside and also very pretty in my opinion. I put strand of hot glue at the bottom of the lamp and just filled the bottom with the moss. Not only was it very pretty but it was also hiding the wires. One thing that worried me was the fact that I had used used cellphone battery for some of them and I was really not sure how long they would last. Innitial testing pointed at around 5 hour of constant use but these results wouldn't necessarily apply to al lthe lantern considering I had different kind of battery and many of them were used in a cellphone before being salvaged for my project. In the end I was lucky as only 2 of the centerpieces ran out of battery during the evening and some of them still appear to light up month later even after being on constantly for the 6 hours of hte reception! Beside not having time to add the battery charger to the centerpiece, me and my wife were very happy with the result! I think it ended up looking really nice on the tables and they were very popular with our guests. So popular that by the time we left the wedding, 17 of the 18 centerpiece had gone missing. We even saw two randoms ladies who were attending a different wedding leaving with one of them. I didn't mind so much except for the fact that I knew they would die off once the battery would run out. Twitter (function(d, s, id) { var js, fjs = d.getElementsByTagName(s)[0]; if (d.getElementById(id)) {return;} js = d.createElement(s); js.id = id; js.src = "//connect.facebook.net/en_GB/all.js#xfbml=1"; fjs.parentNode.insertBefore(js, fjs); }(document, 'script', 'facebook-jssdk'));{lang: 'en-GB'}
I got married a few months ago and I thought that planning a wedding wasn't already stressful enough and decided that I wanted bring some of my geekery to the reception and build all of our centerpieces. I was thinking of doing something like some of the firefly LED jars I saw online but my wife had the idea of having some kind of old fashioned lantern so I decided to merge the two ideas together to build a firefly lantern centerpiece with several feature that I thought would make it stand out. The base for this project was the following criteria: Cheap to build (I would need 18 of them and the wedding costed enough as it was) Small circuit board (cheap to produce) Visually striking without being over stimulating (people had to eat while looking at them all evening) Fit the wedding color theme and look I used a very nice and cheap lantern from ikea that was available in several color. Our wedding color theme was coral and gold and I did not think any of the available color were too fitting so I went with the unpainted silver lantern and painted them gold to match the rest of the wedding theme. I played with the different firefly lantern animation code that are available online and settled on a version developped my Xander Hudson (http://www.instructables.com/id/Jar-of-Fireflies/). The reason I chose this particular one is that I was impressed with the care with which Xander modelled the firefly light pattern using concrete research data on firefly behavior and I tought this one looked much better than some of the other firefly animation code found online. The animation pattern seemed much more relaxing and realistic compared to the other that would just randomly flash one of the LEDs and it was using an attiny45 microcontroller which I already had in my parts bin. I started by doing a prototype on a breadboard to make sure everything would work the way I intended. The hardest part was soldering the very tiny 0603 SMD LEDS to the the very thin enamel wire. I normally never use enamel wire as I find them to be really hard to use but in this case they were the perfect choice as they can be very thin and could be bended without too much risk of breaking. The problem with enamel wire is that the insulation is not a typical plastic insulation, it's basicly just a very thin coat of enamel glue so removing it is kinda tricky. Some people sya the best way is to burn it with a lighter but for me it never produced clear result. What I found worked for me was to take a very sharp blade and scrape away the insulation while slightly turning the wire to remove most of it on all side. A single CR2032 button cell batery would be used to power up the circuit. Once I was satisfied that it was working and that the firefly animation would be nice and not overstimulating, I went ahead and started to design my custom PCB. There was already a PCB available online for this circuit but I found it to be way too big. It was made to fit a mason jar and a big PCB cost much more to produce in small batch. Size of the circuit was also an issue so I re-designed my own and made it as small and self contained as possible to facilitate assembly. I also stumble upon yet another firefly jar project but this one had a fun added feature that would make the firefly react to a tap on the glass using a piezzo so I also added that in my first PCB revision but I ended up abandonning that idea as I had difficulty making it work and I found the firefly animation pattern to be less interesting than the original one from Xander. All wasn't lost tho because I had made the board in a way that I could still use it without the piezzo with the code I originally intended to use. Everything was working properly but as it is often the case with the way I work, I don't plan too much in advance and have many ideas while I am building things and so I started wanting to add more feature to complicate my life even mores. The lanterns I chose to use had nice little stars cut through it's metal top and tought that it might look nice to have light shine through those cutting. I had recently started playing around with WS2812 RGB LEDs (also knows as Neopixel) which are super simple to use, are very cheap and require very minimal wiring. So I went back to my prototype and tried to implement the idea using a single WS2812B RGB LED. I tested my code first on my arduino and used the colorpalette demo of the FastLED WS2812 library and used a color palette reminescent of coral so that that would fit with our wedding color theme. Once I was satisfied with the effect, I transfered the project to a attiny85 to keep the project's final size to a minimum since I was planning of fitting everything inside the lantern and tested it inside the lantern to get a better idea of the effect. Also, considering the added microcontroller and RGB LED that was added to the project, I felt that the CR2032 button cell battery was no longer appropriate to power up this project. I replaced it with a spare Nintendo 3DS battery that I had on hand. That kind of battery was much more powerful, rechargeable and still thin enough to be contained the lantern. I did not bother yet with adding a way to charge the battery and just charged the battery using a separate charging circuit for the meantime and planned on wiring a lipo battery charger later on. But with everything seemingly working as I intended, I went ahead and redesigned my custom circuit board to incorporate the new centerpiece's feature. I also realised that the light shinning inside the lid would not be as noticeable as I wanted them to be and that I needed some kind of light difuser to make them nicer and more visible. I used a type of crafting paper which is very similar to waxed paper and put a piece behind every stars on the lid but I feel that pretty much any paper would work as long as they let some light pass through. I also decided to add yet another feature to the centerpiece after finally deciding what would be in the center of the lantern. I was planning of having a rose in the center and I tought it would look magical to have it glow so I added connections and component for an extra LED in case I would go with this idea. My second custom PCB revision came up even smaller than the original and as a result, very cheap to produce. You can see side by side with my first revision.   The reason why the second board revision have this weird shape is because I was planning on using an already made lipo battery charging PCB and was planning on directly soldering both board together but I ended up messing up my dimension and the connection were not lining up properly so they were left unused. I ended up not having time to work in the charging circuit so I made them one time use. Wit hall the work that went into them, I didn't want them to become paper weight and I figured that I would re-open some after the wedding to add the missing charger.   I managed to find the perfect flower to add to the center of the lantern. I bought it a Dollarama, a Canadian store that sell most of it's product for around a dollar. It was a synthetic white rose made out of foamy material with a bit of glitter on the petal. It looked very realistic and it had the perfect material as I could shine my cellphone flash through the material. I removed the flower bud from the stem, drilled a hole in in the bottom and inserted a LED I had previously wired up in the center of the flower before sealing it with hot glue.     I tested again and was very pleased with the result!   Adding this extra LED was an aftertought so I did not try to animate the lighting in anyway. I tought that a breathing effect of slowly lighting on and then slowly dimming down (like on some Mac laptop) would have been nice but at this point I was pressing with time and I tought it might be too much to add considering all the other effect that I was adding to the lantern. Now that all my idea seemed to be working out, it was time to assemble all of my centerpieces. It turned out to be a real nightmare as I waited far too long to start building them and started way too close to the wedding date. Soldering the microscopic SMD LEDs took ages as there were so many to do. I had eighteen lantern to produce, each of them with six SMD LEDs that needed to be wired with two hair thin enamel wire cut to the correct lenght and have their insulation stripped to allow for soldering. That's 216 individual wires to solder to microscopic parts and that is without counting the added wiring for the flower LED and soldering the various parts on the eithteen PCBs! I grossly under evaluated the time it would take and had to work non stop in the two week preceeding the wedding. In fact I finished assembling them a day or two before the wedding! I removed each glass panel from the lantern by unclipping them and then removed all the labels with some glue remover (Googone) before spray painting them gold to match the wedding color theme.   One of the problem that I had was figuring out a way to make the circuit hold inside the top of the lanter. I tought of using thin piece of wood wit hsomekind of reatiner on the side but I was getting pressed with time and I decided to have the circuit board and the battery mounted with glue on a piece of cardboard that I cut to size. It look a bit cheap but I was running out of time and needed to get it done. Using cardboard, while unprofesionnal looking, allow me to force insert it inside the top even with hte bulk of the battery sticking out.    After painting, I started glueing the LED flower that I had pre-wired in the center, ran the wire on one of the side, connected it to the mounted PCB and put the cardboard insert inside the top of the lantern making sure everything was working before sealing it by gluing the cardboad stock to the lantern's top. I still needed something decorative around the flower, something I did not figure out until the last minute. I had a few idea ranging from pebbles, colored gravel, glass stone to simulating water with epoxy. But in the end, I went with green dried moss. It was very cheap, easy to fix inside and also very pretty in my opinion. I put strand of hot glue at the bottom of the lamp and just filled the bottom with the moss. Not only was it very pretty but it was also hiding the wires. One thing that worried me was the fact that I had used used cellphone battery for some of them and I was really not sure how long they would last. Innitial testing pointed at around 5 hour of constant use but these results wouldn't necessarily apply to al lthe lantern considering I had different kind of battery and many of them were used in a cellphone before being salvaged for my project. In the end I was lucky as only 2 of the centerpieces ran out of battery during the evening and some of them still appear to light up month later even after being on constantly for the 6 hours of hte reception! Beside not having time to add the battery charger to the centerpiece, me and my wife were very happy with the result! I think it ended up looking really nice on the tables and they were very popular with our guests. So popular that by the time we left the wedding, 17 of the 18 centerpiece had gone missing. We even saw two randoms ladies who were attending a different wedding leaving with one of them. I didn't mind so much except for the fact that I knew they would die off once the battery would run out. Twitter (function(d, s, id) { var js, fjs = d.getElementsByTagName(s)[0]; if (d.getElementById(id)) {return;} js = d.createElement(s); js.id = id; js.src = "//connect.facebook.net/en_GB/all.js#xfbml=1"; fjs.parentNode.insertBefore(js, fjs); }(document, 'script', 'facebook-jssdk'));{lang: 'en-GB'}
80 out of 100 with 1 ratings

I got married a few months ago and I thought that planning a wedding wasn't already stressful enough and decided that I wanted bring some of my geekery to the reception and build all of our centerpieces. I was thinking of doing something like some of the firefly LED jars I saw online but my wife had the idea of having some kind of old fashioned lantern so I decided to merge the two ideas together to build a firefly lantern centerpiece with several feature that I thought would make it stand out.

The base for this project was the following criteria:

  • Cheap to build (I would need 18 of them and the wedding costed enough as it was)
  • Small circuit board (cheap to produce)
  • Visually striking without being over stimulating (people had to eat while looking at them all evening)
  • Fit the wedding color theme and look

I used a very nice and cheap lantern from ikea that was available in several color. Our wedding color theme was coral and gold and I did not think any of the available color were too fitting so I went with the unpainted silver lantern and painted them gold to match the rest of the wedding theme.

I played with the different firefly lantern animation code that are available online and settled on a version developped my Xander Hudson (http://www.instructables.com/id/Jar-of-Fireflies/). The reason I chose this particular one is that I was impressed with the care with which Xander modelled the firefly light pattern using concrete research data on firefly behavior and I tought this one looked much better than some of the other firefly animation code found online. The animation pattern seemed much more relaxing and realistic compared to the other that would just randomly flash one of the LEDs and it was using an attiny45 microcontroller which I already had in my parts bin.

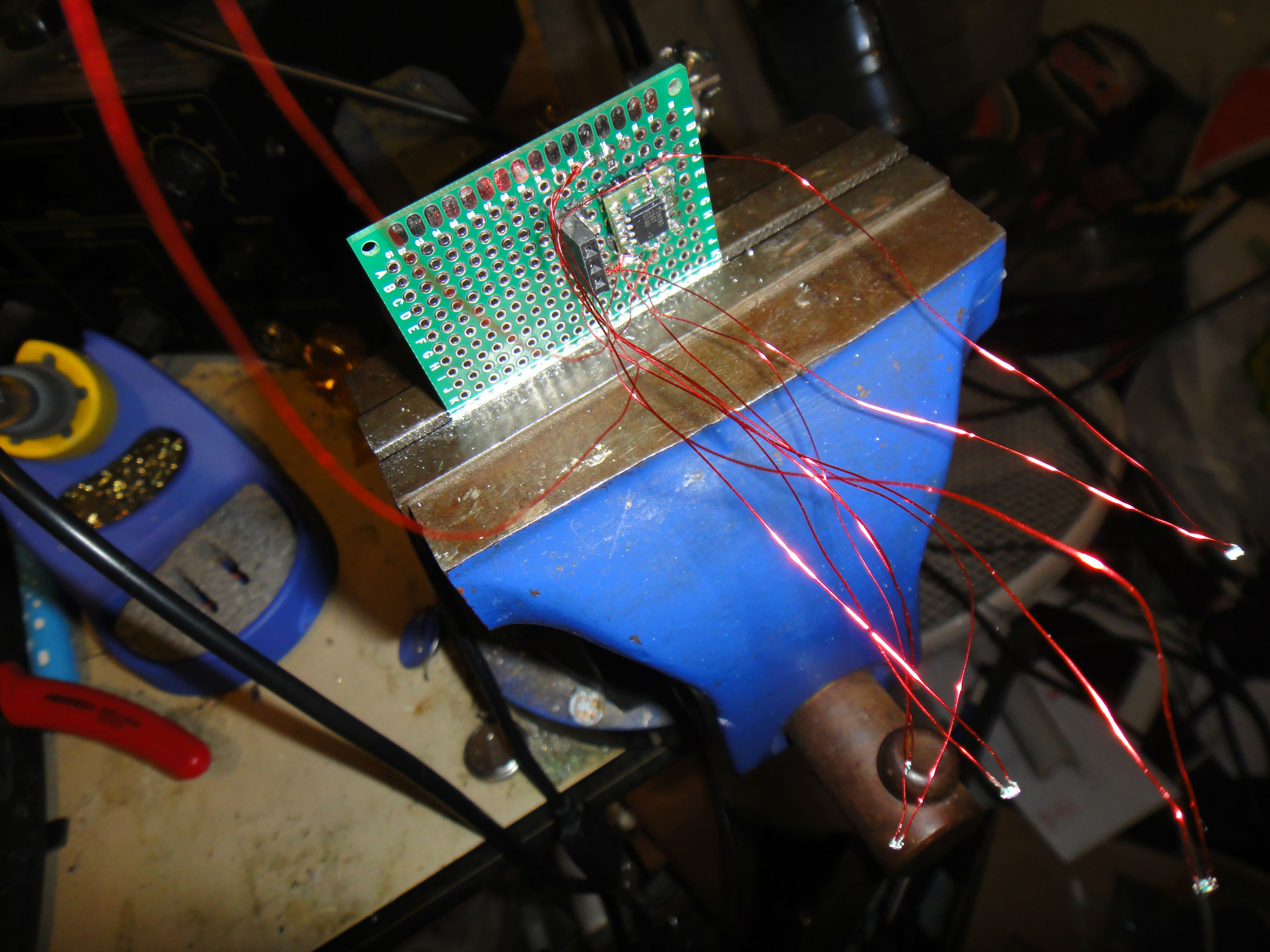

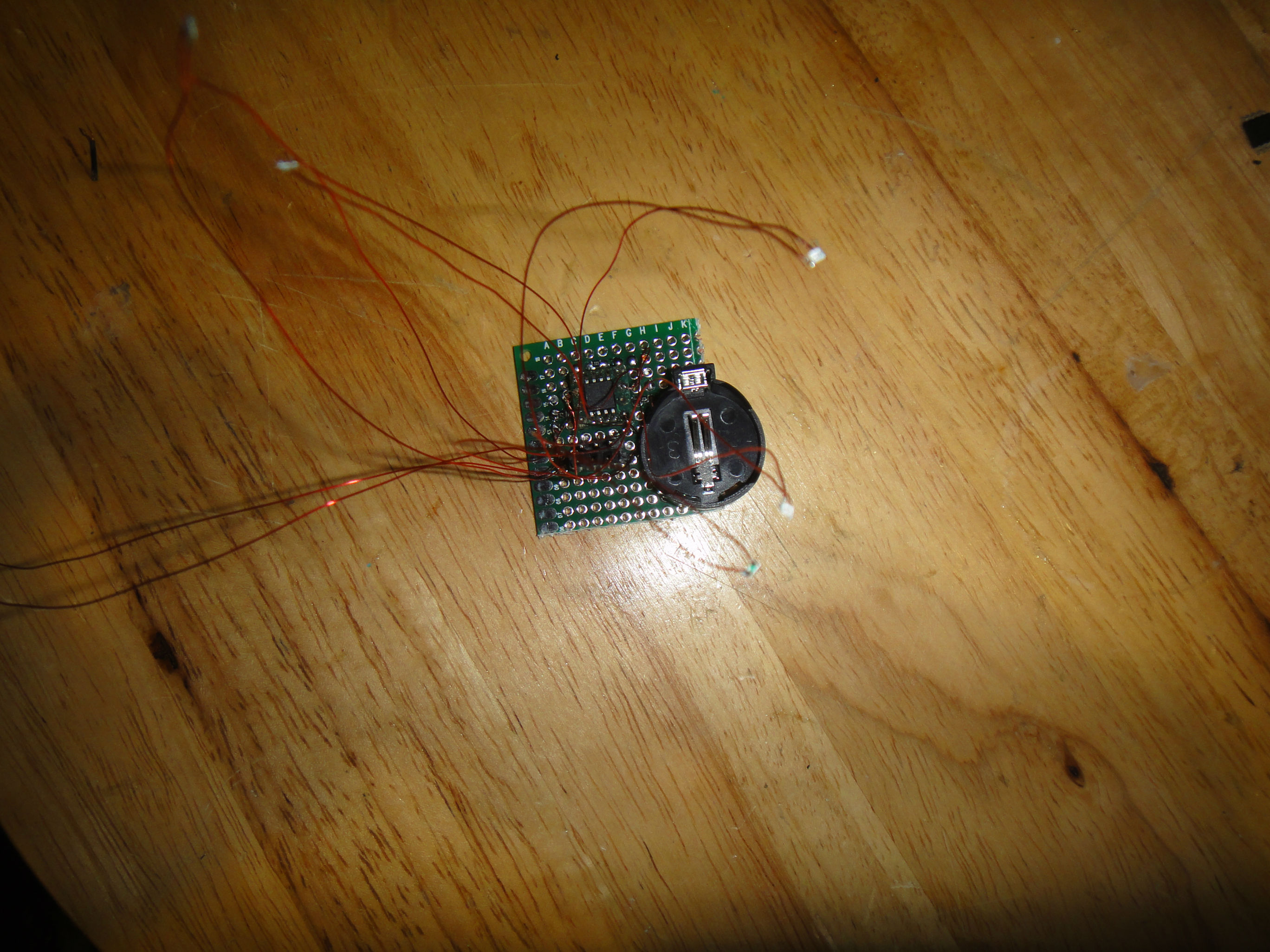

I started by doing a prototype on a breadboard to make sure everything would work the way I intended. The hardest part was soldering the very tiny 0603 SMD LEDS to the the very thin enamel wire. I normally never use enamel wire as I find them to be really hard to use but in this case they were the perfect choice as they can be very thin and could be bended without too much risk of breaking. The problem with enamel wire is that the insulation is not a typical plastic insulation, it's basicly just a very thin coat of enamel glue so removing it is kinda tricky. Some people sya the best way is to burn it with a lighter but for me it never produced clear result. What I found worked for me was to take a very sharp blade and scrape away the insulation while slightly turning the wire to remove most of it on all side. A single CR2032 button cell batery would be used to power up the circuit.

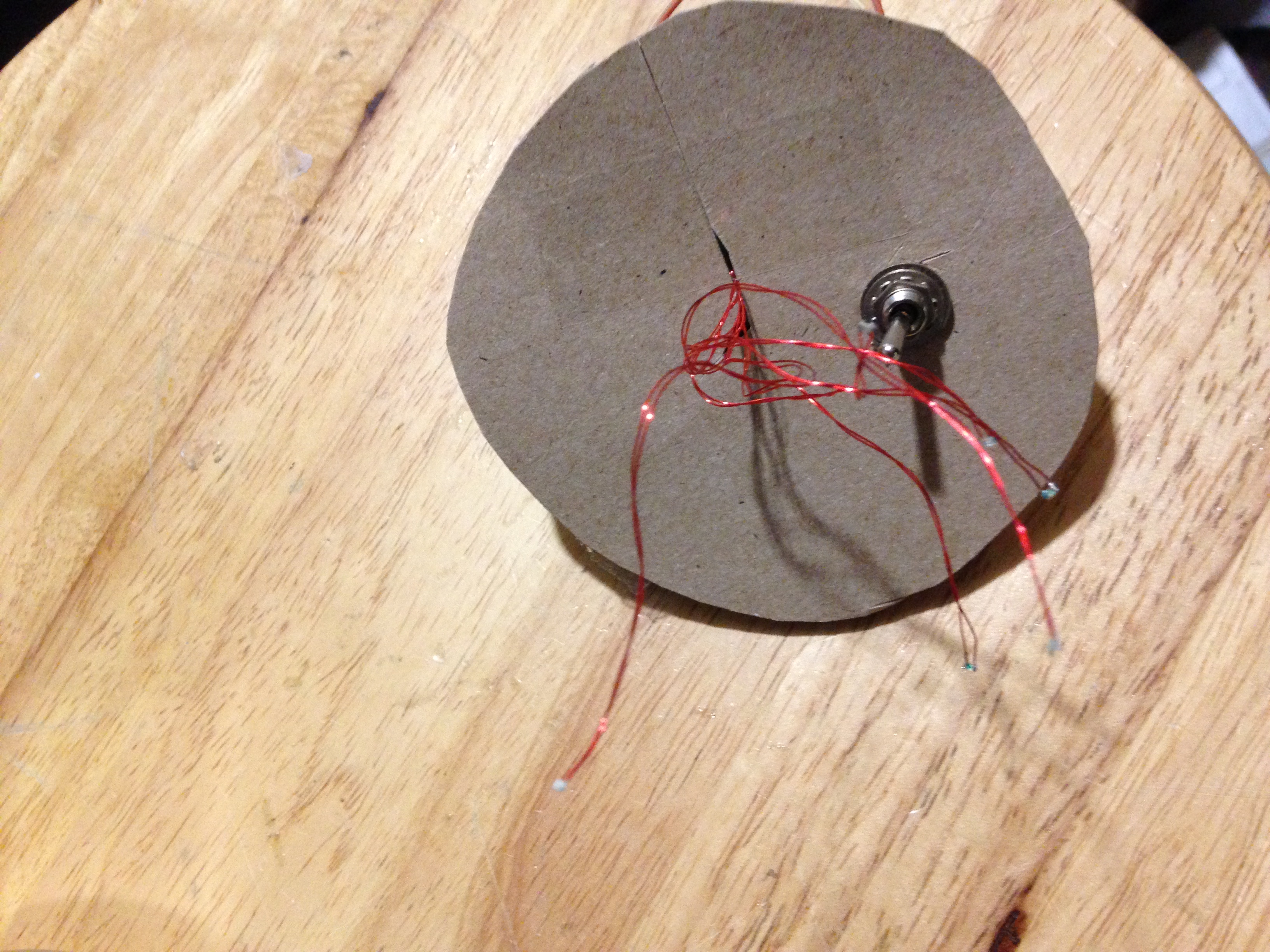

lantern proto clamplantern prototypelantern proto top

Once I was satisfied that it was working and that the firefly animation would be nice and not overstimulating, I went ahead and started to design my custom PCB. There was already a PCB available online for this circuit but I found it to be way too big. It was made to fit a mason jar and a big PCB cost much more to produce in small batch. Size of the circuit was also an issue so I re-designed my own and made it as small and self contained as possible to facilitate assembly. I also stumble upon yet another firefly jar project but this one had a fun added feature that would make the firefly react to a tap on the glass using a piezzo so I also added that in my first PCB revision but I ended up abandonning that idea as I had difficulty making it work and I found the firefly animation pattern to be less interesting than the original one from Xander. All wasn't lost tho because I had made the board in a way that I could still use it without the piezzo with the code I originally intended to use.

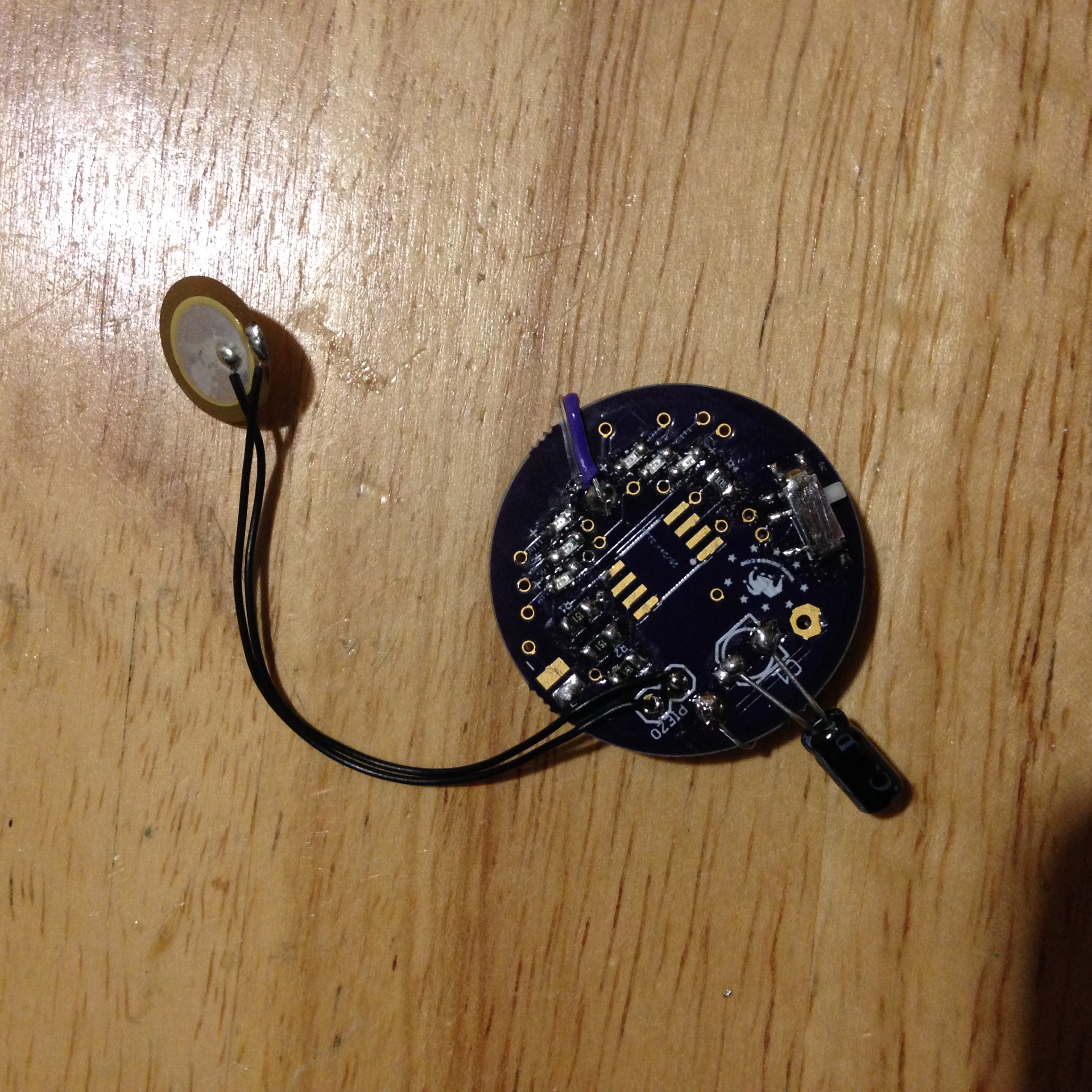

lantern protopcb1 front

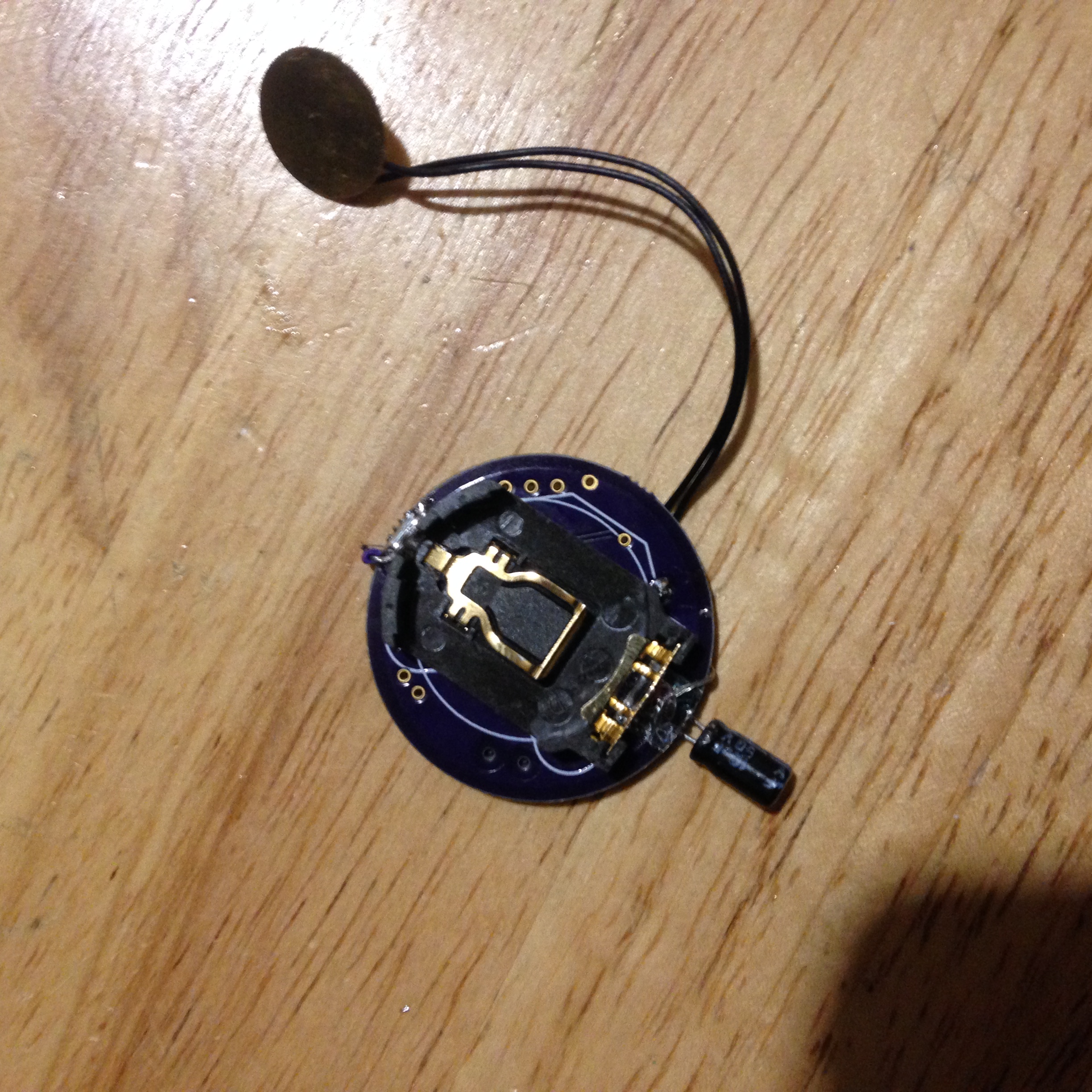

lantern protopcb1 back

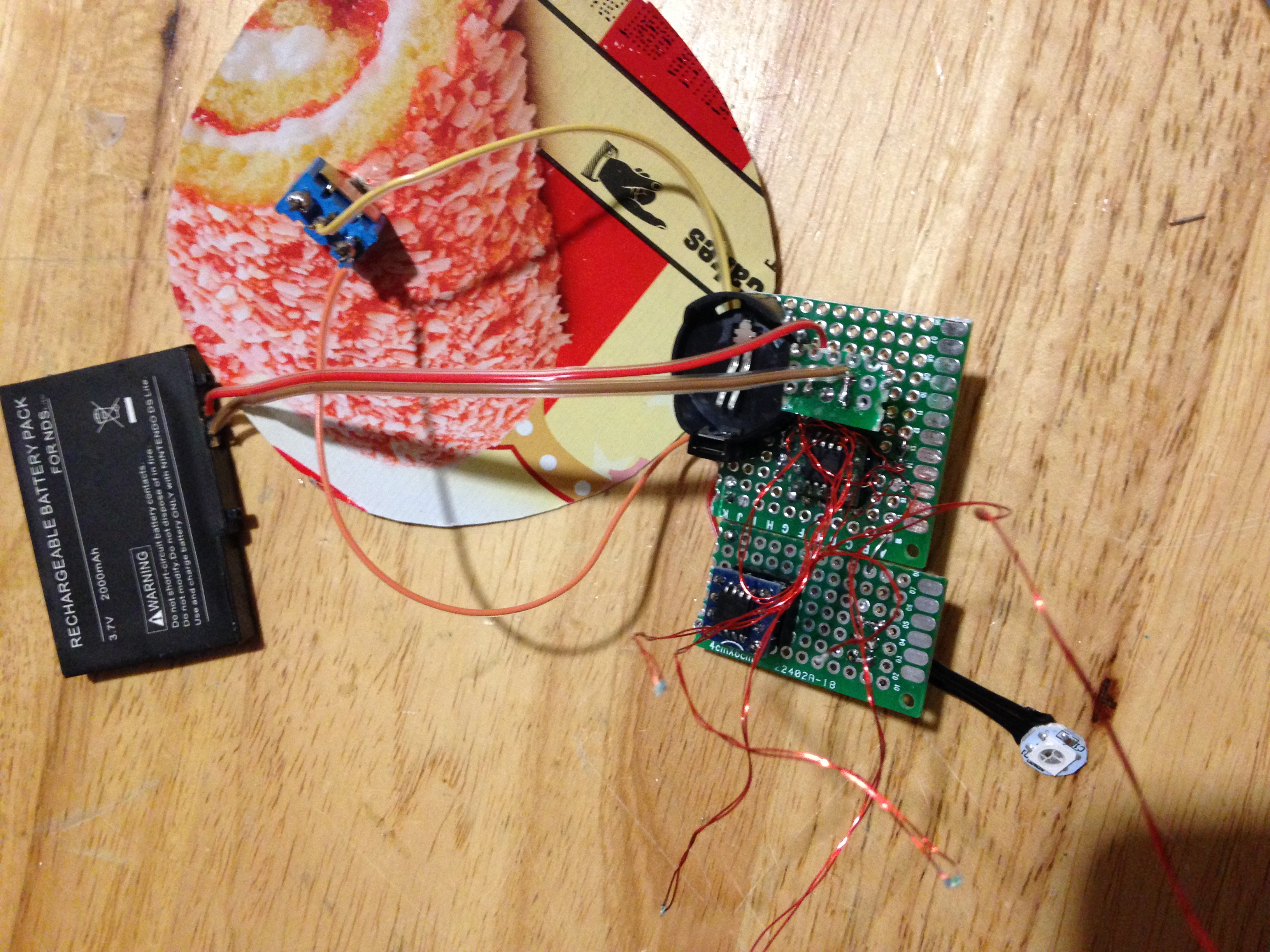

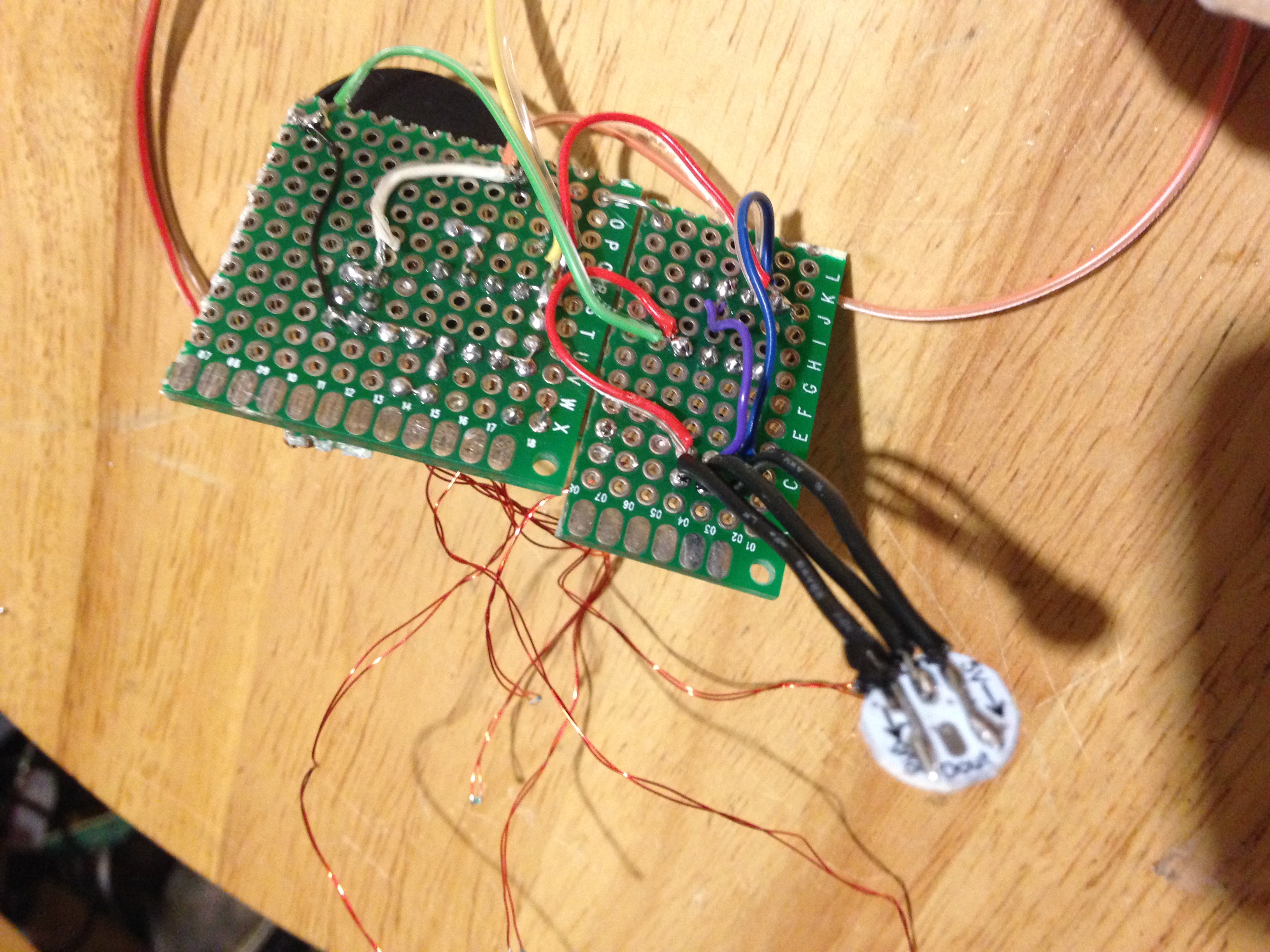

Everything was working properly but as it is often the case with the way I work, I don't plan too much in advance and have many ideas while I am building things and so I started wanting to add more feature to complicate my life even mores. The lanterns I chose to use had nice little stars cut through it's metal top and tought that it might look nice to have light shine through those cutting. I had recently started playing around with WS2812 RGB LEDs (also knows as Neopixel) which are super simple to use, are very cheap and require very minimal wiring. So I went back to my prototype and tried to implement the idea using a single WS2812B RGB LED. I tested my code first on my arduino and used the colorpalette demo of the FastLED WS2812 library and used a color palette reminescent of coral so that that would fit with our wedding color theme. Once I was satisfied with the effect, I transfered the project to a attiny85 to keep the project's final size to a minimum since I was planning of fitting everything inside the lantern and tested it inside the lantern to get a better idea of the effect. Also, considering the added microcontroller and RGB LED that was added to the project, I felt that the CR2032 button cell battery was no longer appropriate to power up this project. I replaced it with a spare Nintendo 3DS battery that I had on hand. That kind of battery was much more powerful, rechargeable and still thin enough to be contained the lantern.

lantern proto2 front

lantern proto2 back

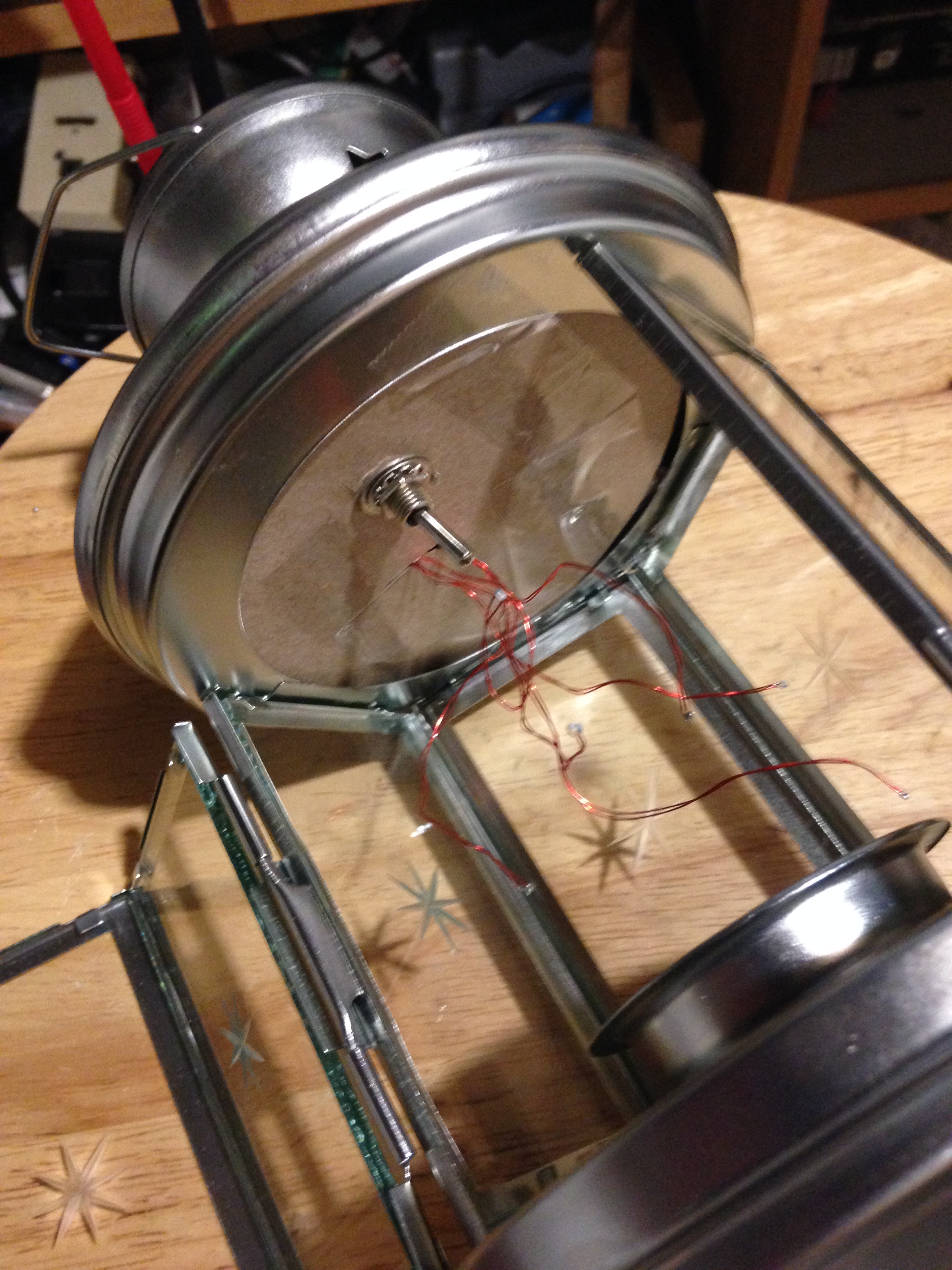

lantern proto test

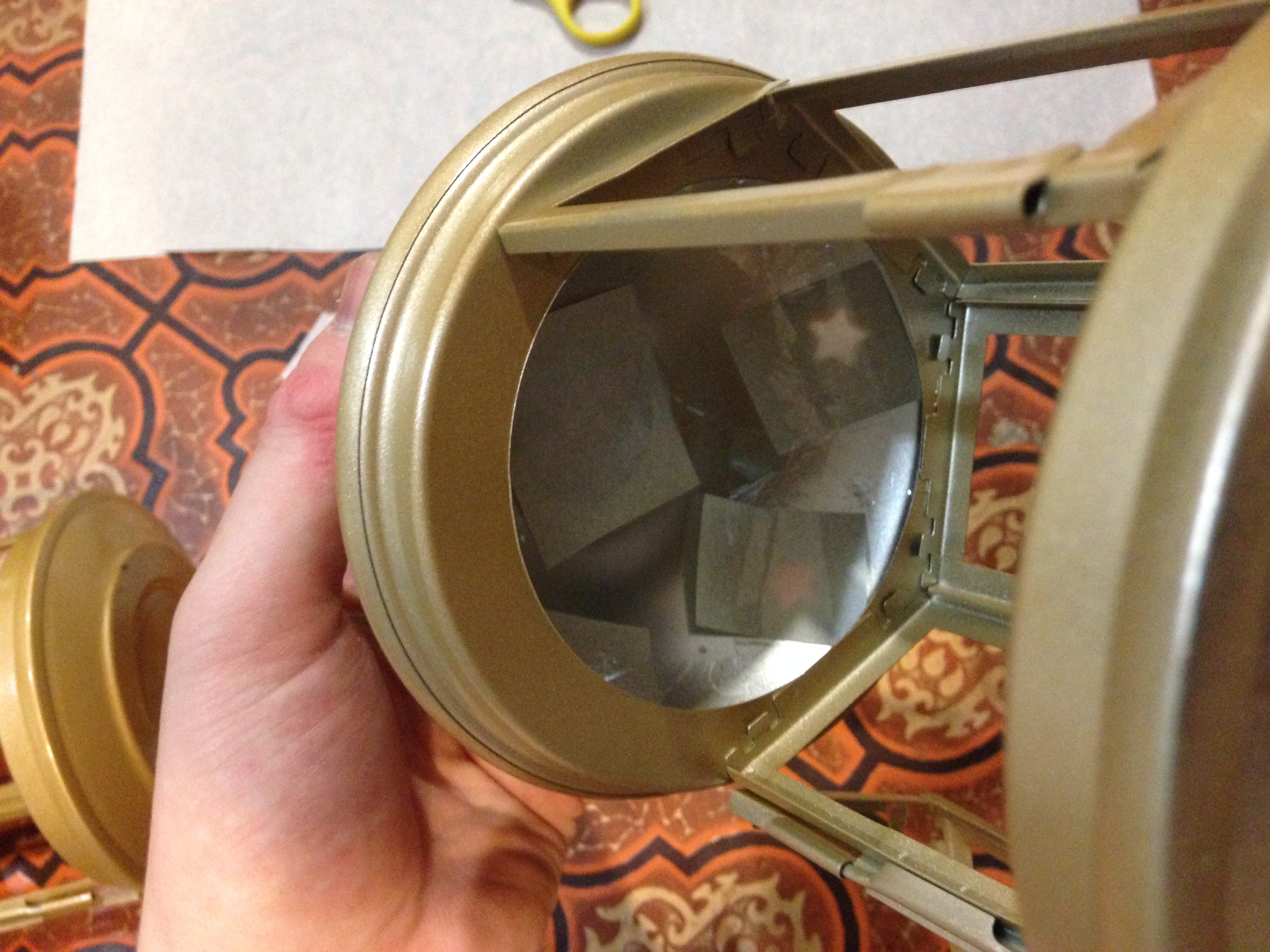

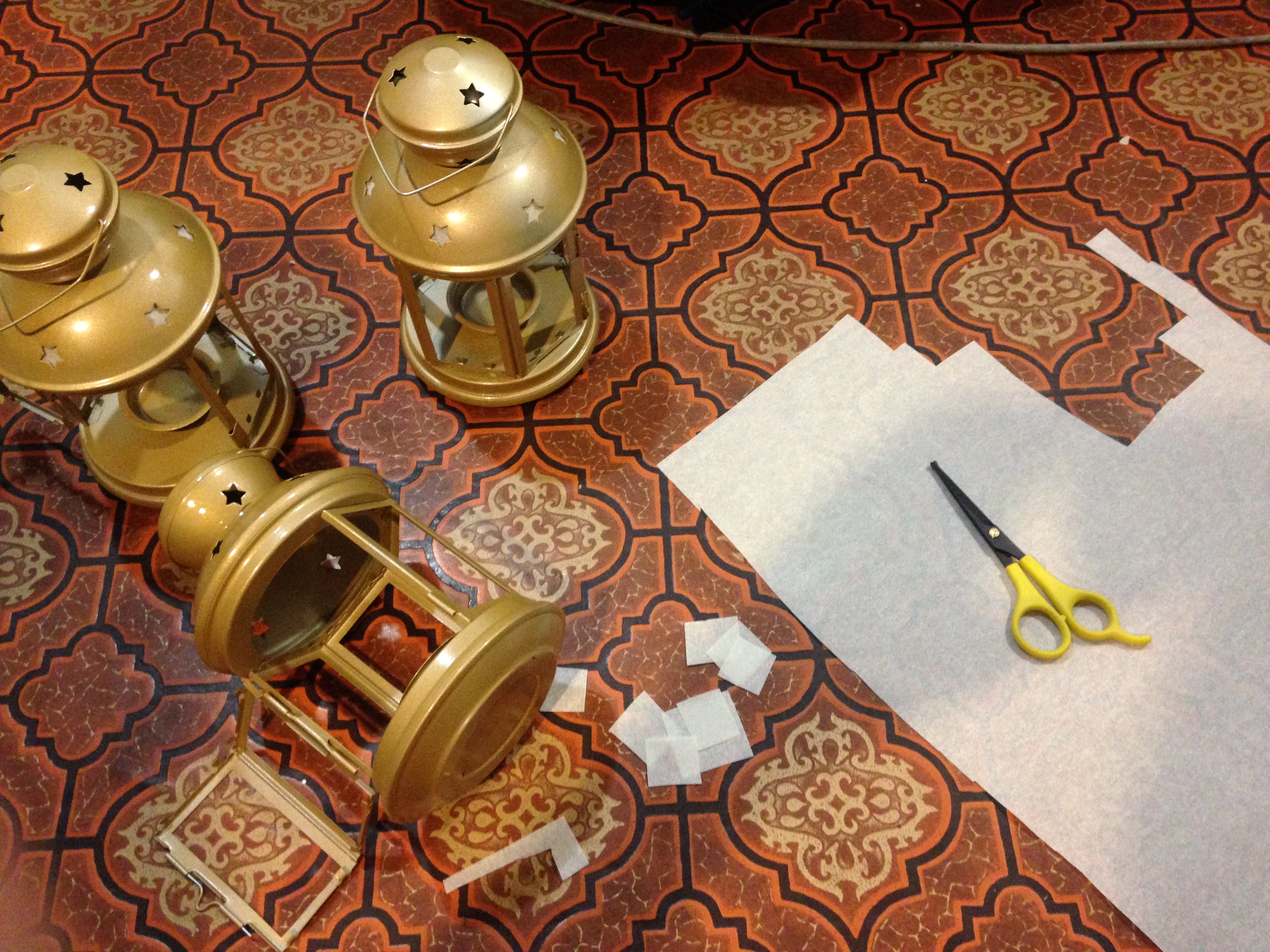

I did not bother yet with adding a way to charge the battery and just charged the battery using a separate charging circuit for the meantime and planned on wiring a lipo battery charger later on. But with everything seemingly working as I intended, I went ahead and redesigned my custom circuit board to incorporate the new centerpiece's feature. I also realised that the light shinning inside the lid would not be as noticeable as I wanted them to be and that I needed some kind of light difuser to make them nicer and more visible. I used a type of crafting paper which is very similar to waxed paper and put a piece behind every stars on the lid but I feel that pretty much any paper would work as long as they let some light pass through.

IMG 8462

IMG 8463

I also decided to add yet another feature to the centerpiece after finally deciding what would be in the center of the lantern. I was planning of having a rose in the center and I tought it would look magical to have it glow so I added connections and component for an extra LED in case I would go with this idea.

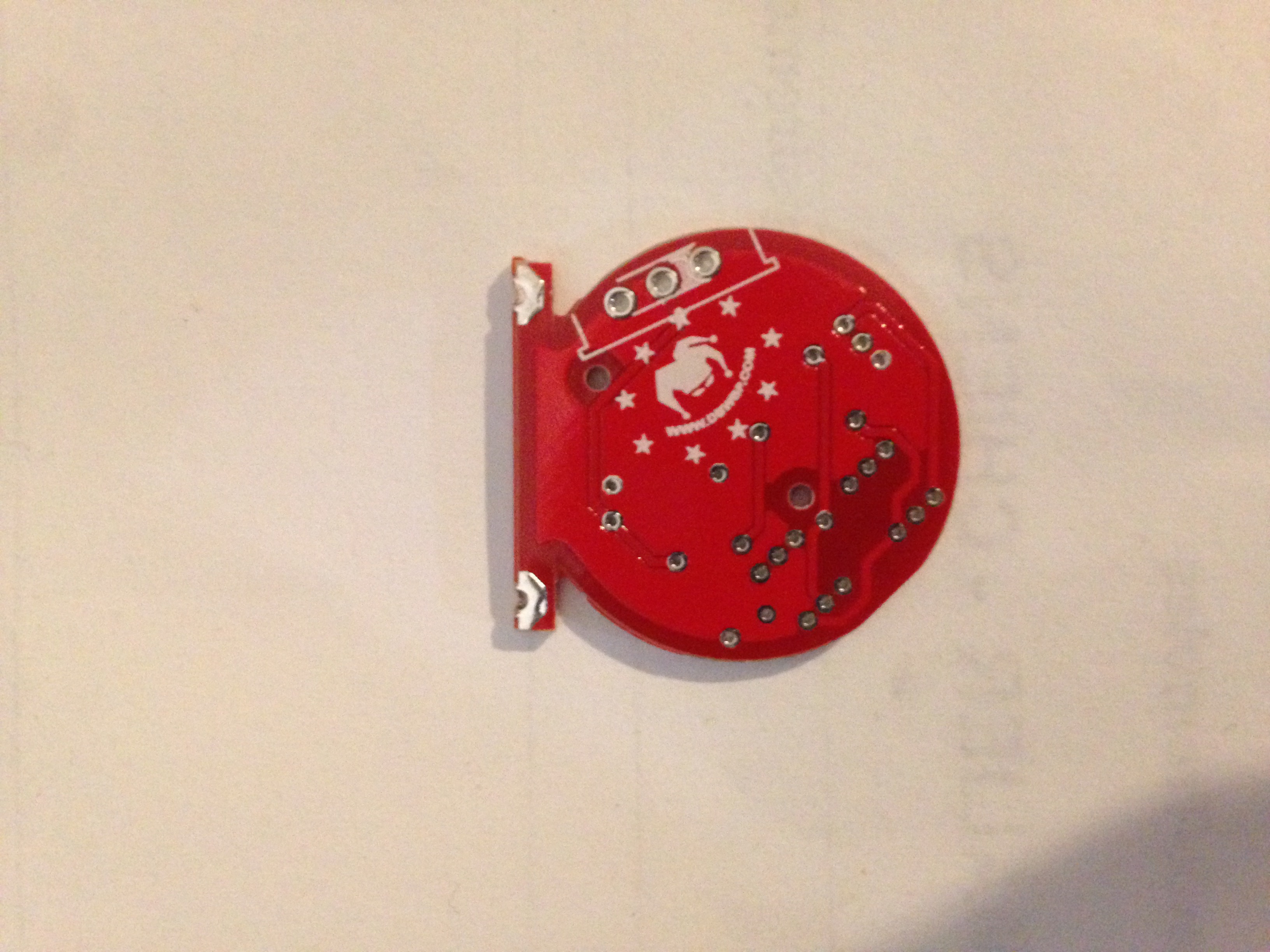

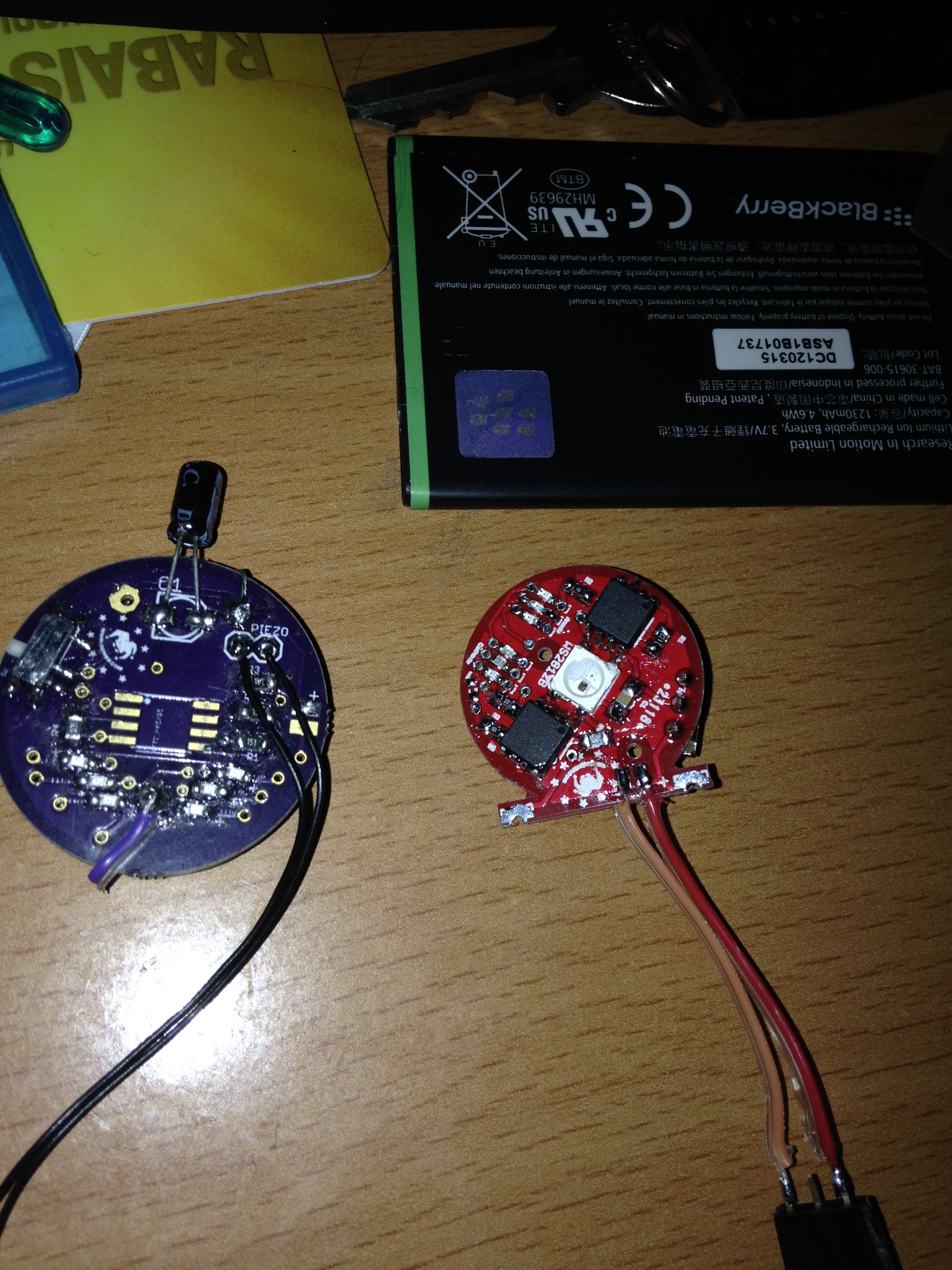

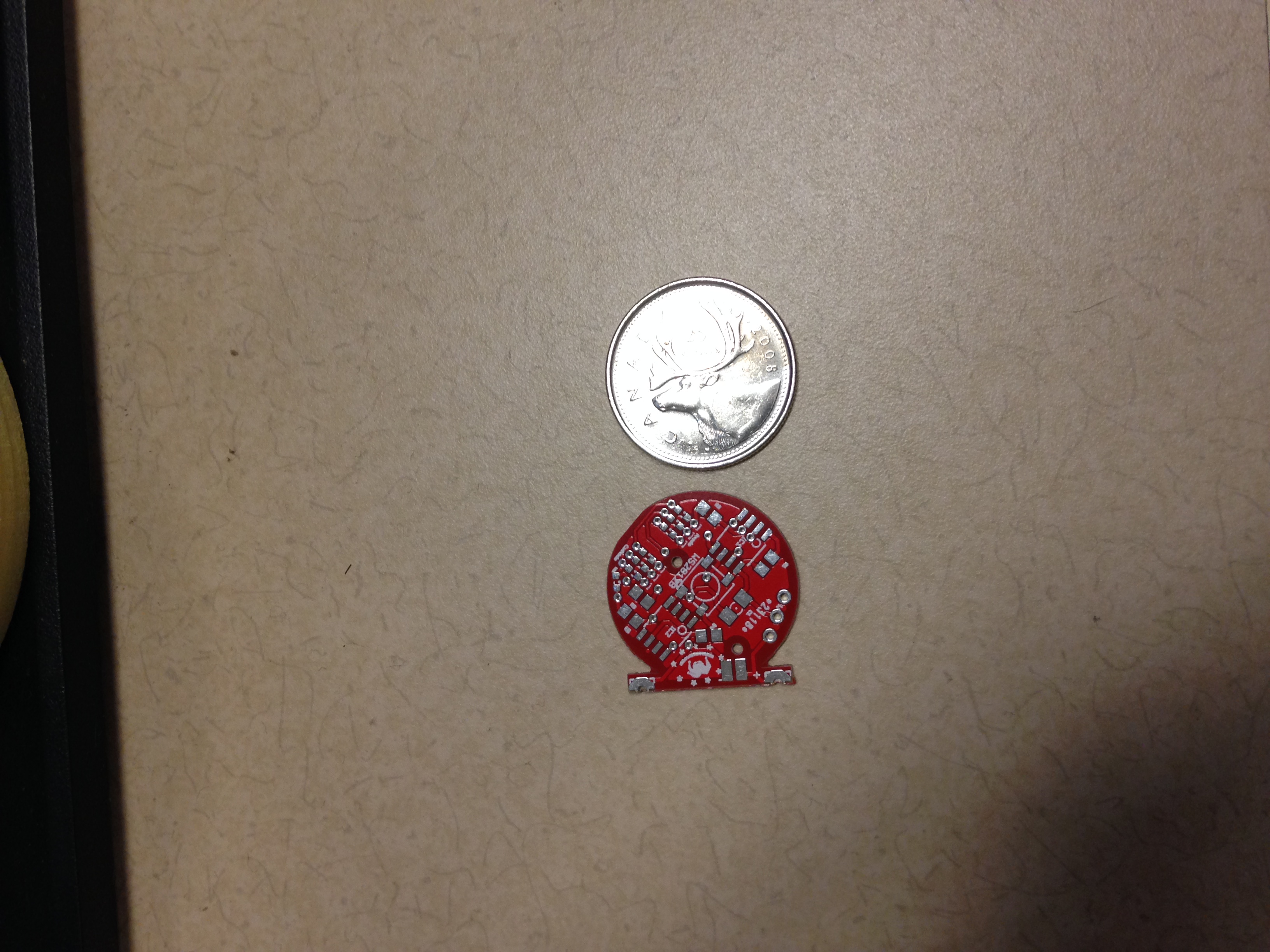

My second custom PCB revision came up even smaller than the original and as a result, very cheap to produce. You can see side by side with my first revision.

lantern pcb2 frontlantern pcb2 back

lantern pcb2 size



The reason why the second board revision have this weird shape is because I was planning on using an already made lipo battery charging PCB and was planning on directly soldering both board together but I ended up messing up my dimension and the connection were not lining up properly so they were left unused. I ended up not having time to work in the charging circuit so I made them one time use. Wit hall the work that went into them, I didn't want them to become paper weight and I figured that I would re-open some after the wedding to add the missing charger.

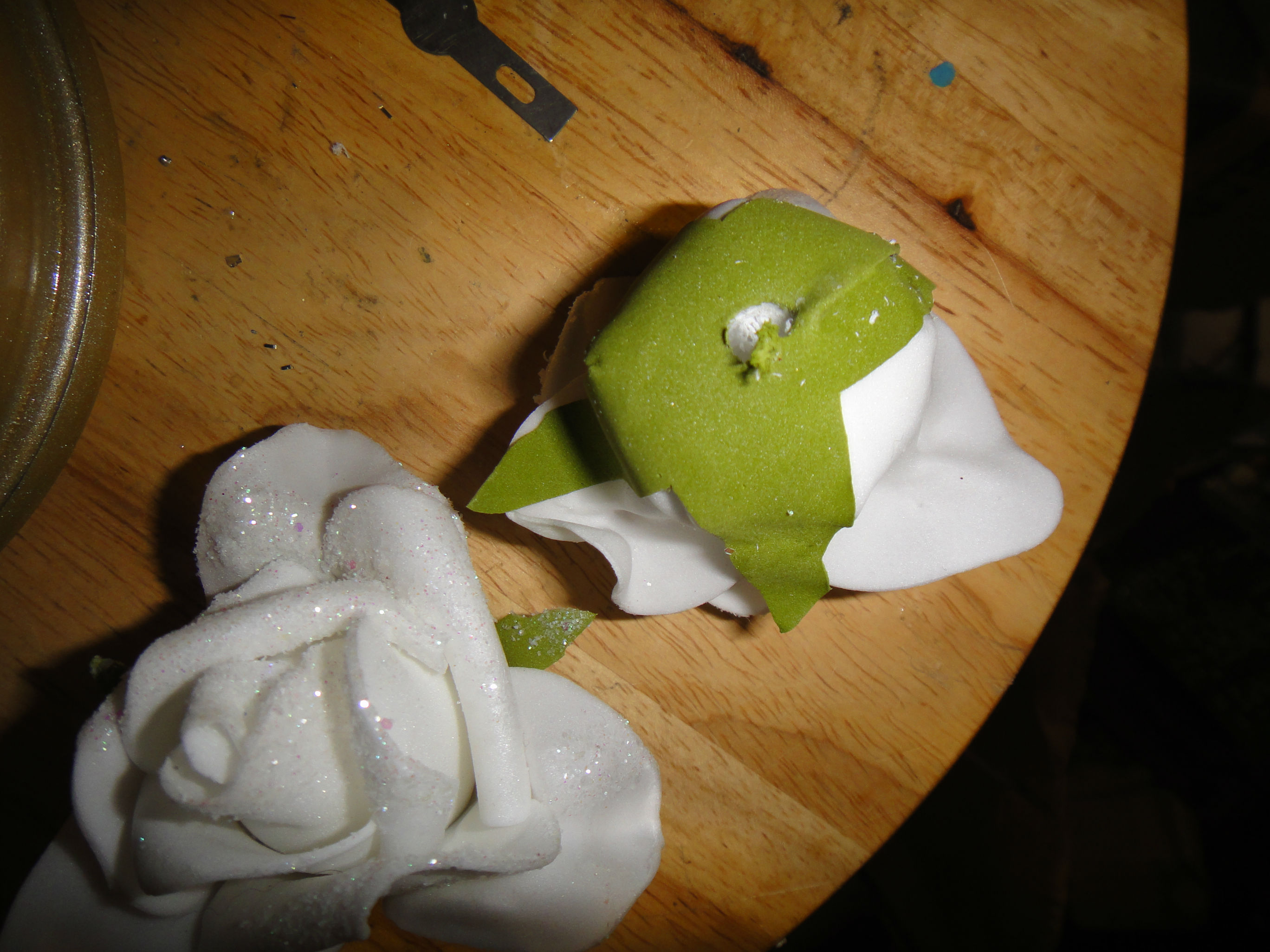

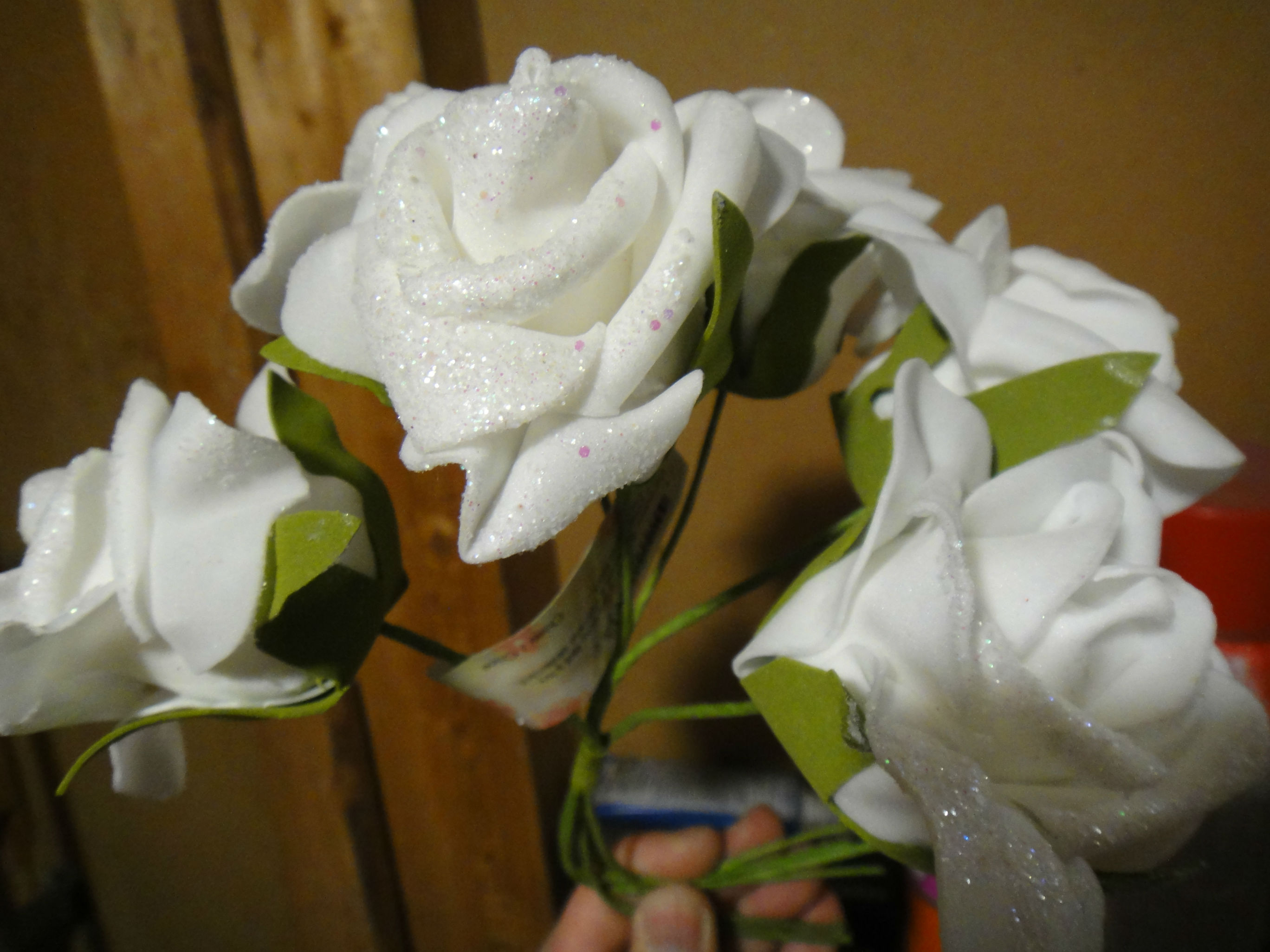

I managed to find the perfect flower to add to the center of the lantern. I bought it a Dollarama, a Canadian store that sell most of it's product for around a dollar. It was a synthetic white rose made out of foamy material with a bit of glitter on the petal. It looked very realistic and it had the perfect material as I could shine my cellphone flash through the material. I removed the flower bud from the stem, drilled a hole in in the bottom and inserted a LED I had previously wired up in the center of the flower before sealing it with hot glue.

 lantern flowerlantern flower drill



I tested again and was very pleased with the result!

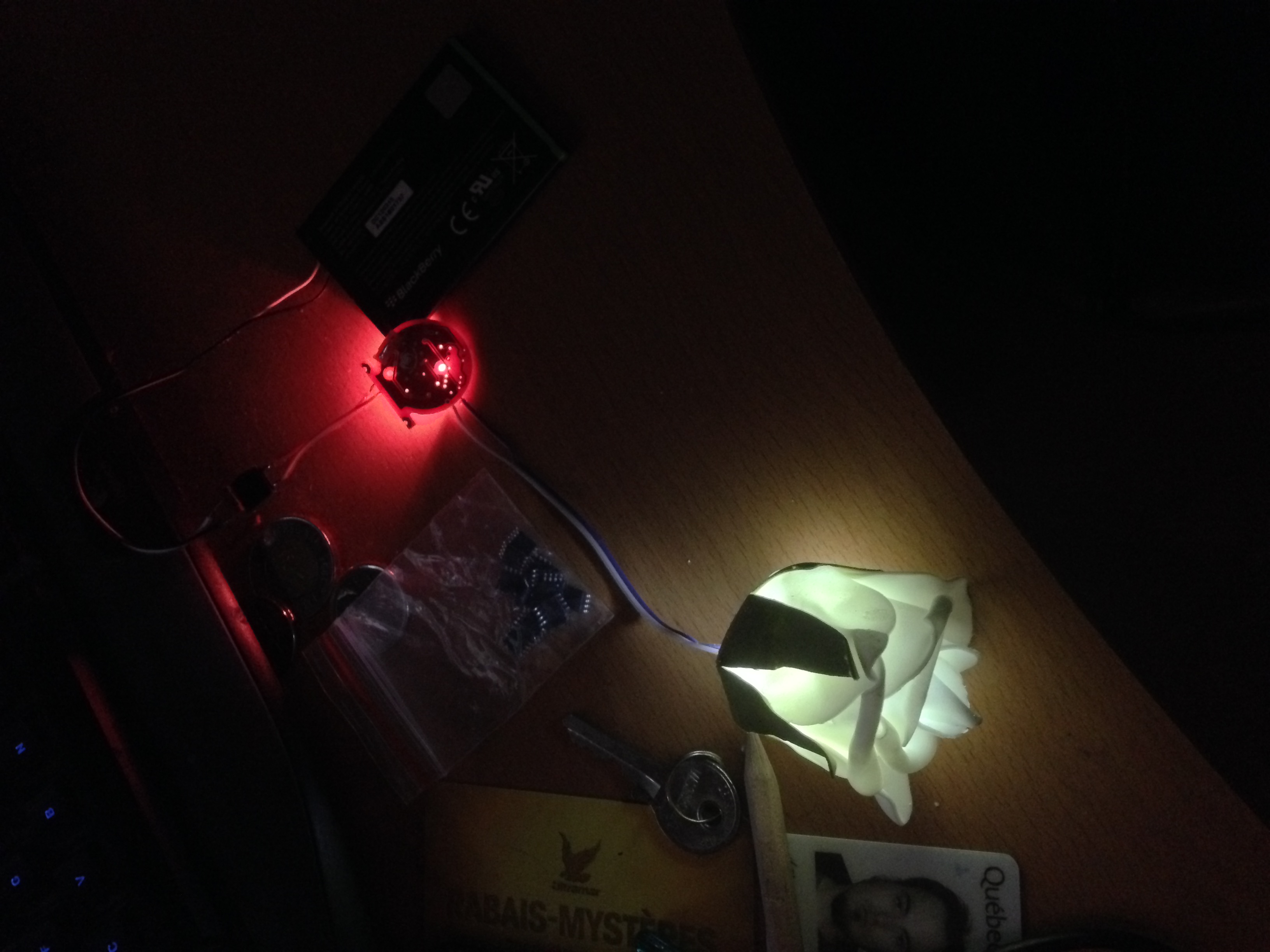

lantern flower test

Adding this extra LED was an aftertought so I did not try to animate the lighting in anyway. I tought that a breathing effect of slowly lighting on and then slowly dimming down (like on some Mac laptop) would have been nice but at this point I was pressing with time and I tought it might be too much to add considering all the other effect that I was adding to the lantern.

Now that all my idea seemed to be working out, it was time to assemble all of my centerpieces. It turned out to be a real nightmare as I waited far too long to start building them and started way too close to the wedding date. Soldering the microscopic SMD LEDs took ages as there were so many to do. I had eighteen lantern to produce, each of them with six SMD LEDs that needed to be wired with two hair thin enamel wire cut to the correct lenght and have their insulation stripped to allow for soldering. That's 216 individual wires to solder to microscopic parts and that is without counting the added wiring for the flower LED and soldering the various parts on the eithteen PCBs! I grossly under evaluated the time it would take and had to work non stop in the two week preceeding the wedding. In fact I finished assembling them a day or two before the wedding!

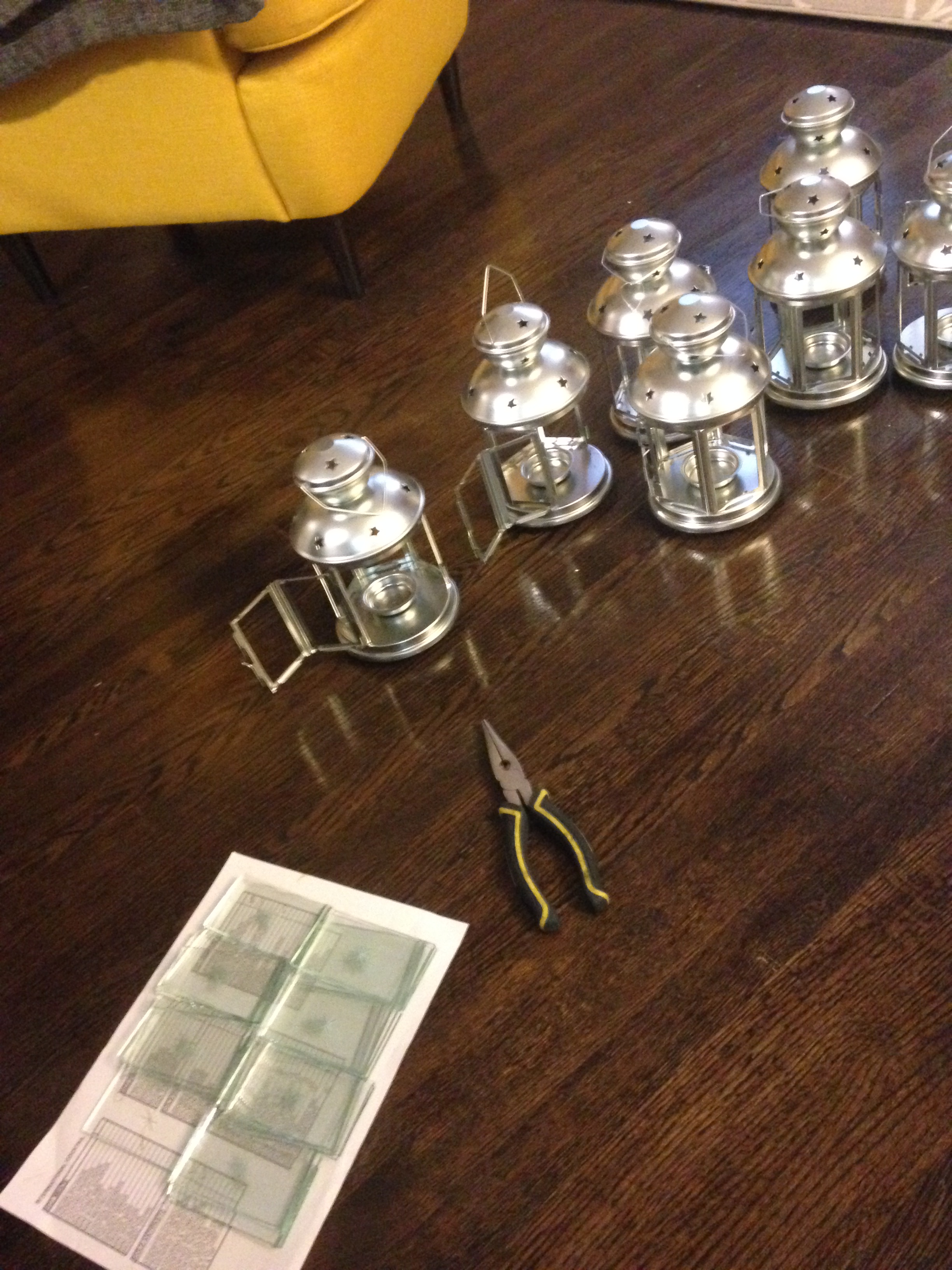

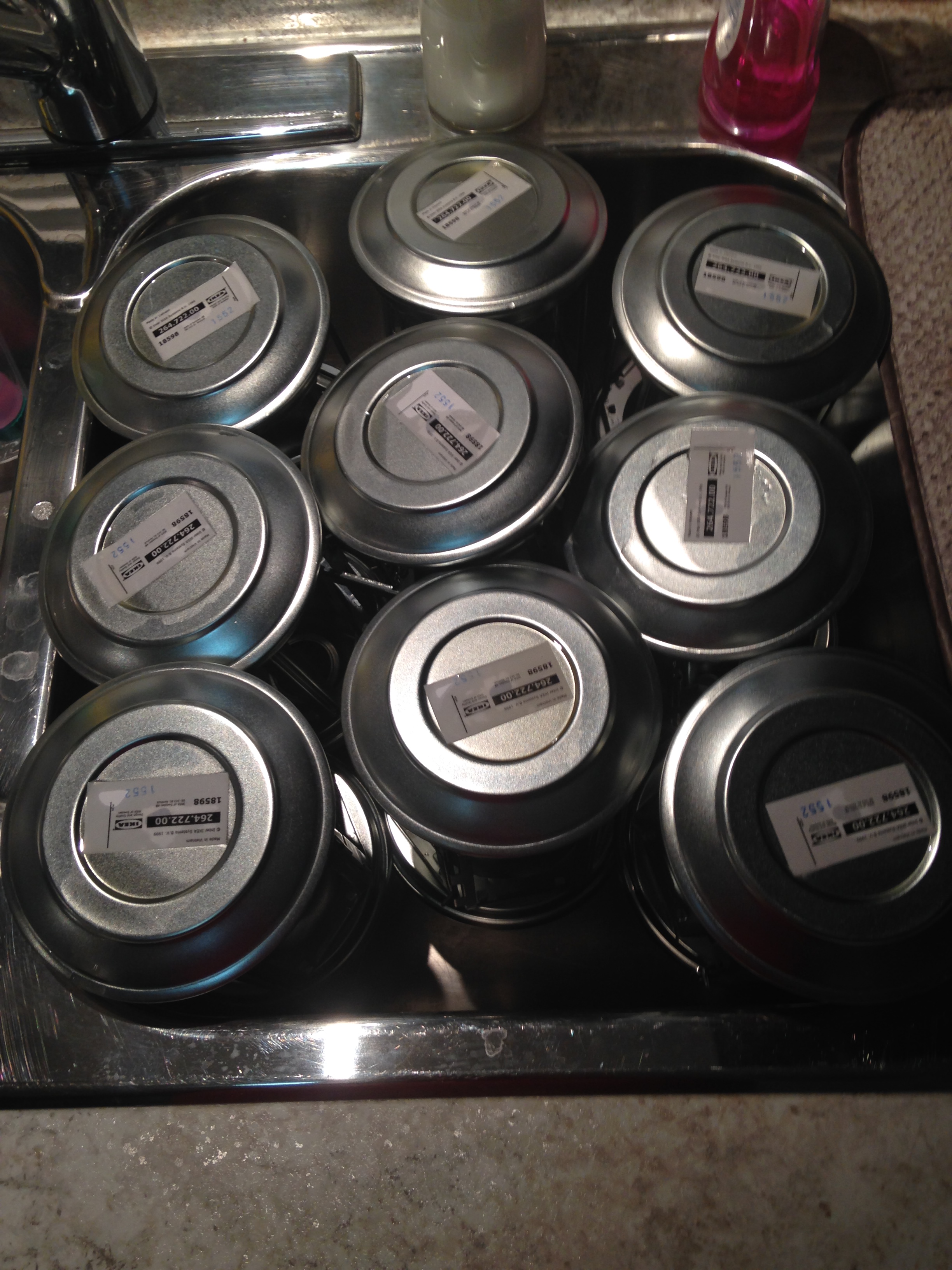

I removed each glass panel from the lantern by unclipping them and then removed all the labels with some glue remover (Googone) before spray painting them gold to match the wedding color theme.

lantern glass removal



lantern sticker removal

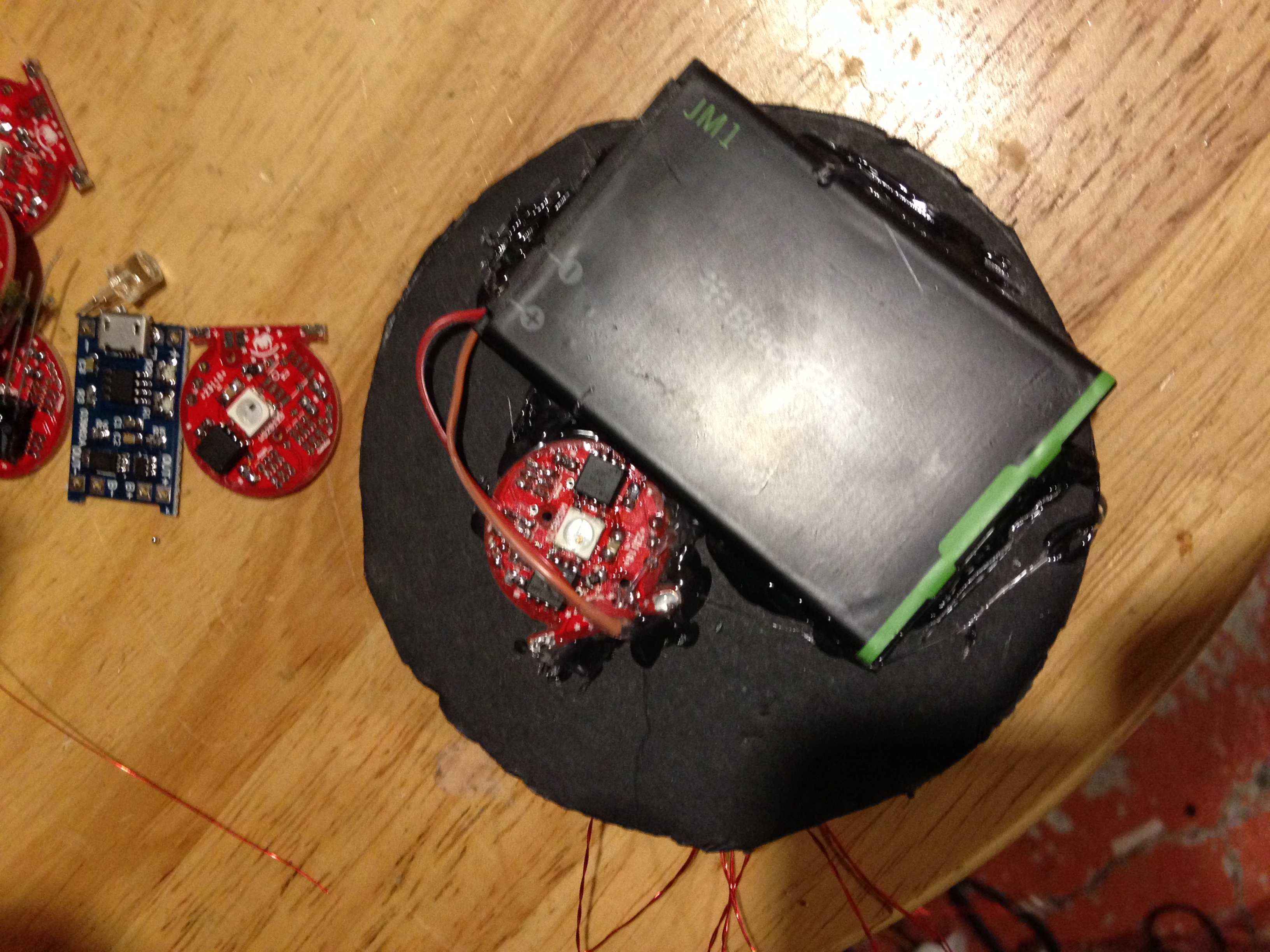

One of the problem that I had was figuring out a way to make the circuit hold inside the top of the lanter. I tought of using thin piece of wood wit hsomekind of reatiner on the side but I was getting pressed with time and I decided to have the circuit board and the battery mounted with glue on a piece of cardboard that I cut to size. It look a bit cheap but I was running out of time and needed to get it done.

IMG 8440

Using cardboard, while unprofesionnal looking, allow me to force insert it inside the top even with hte bulk of the battery sticking out.

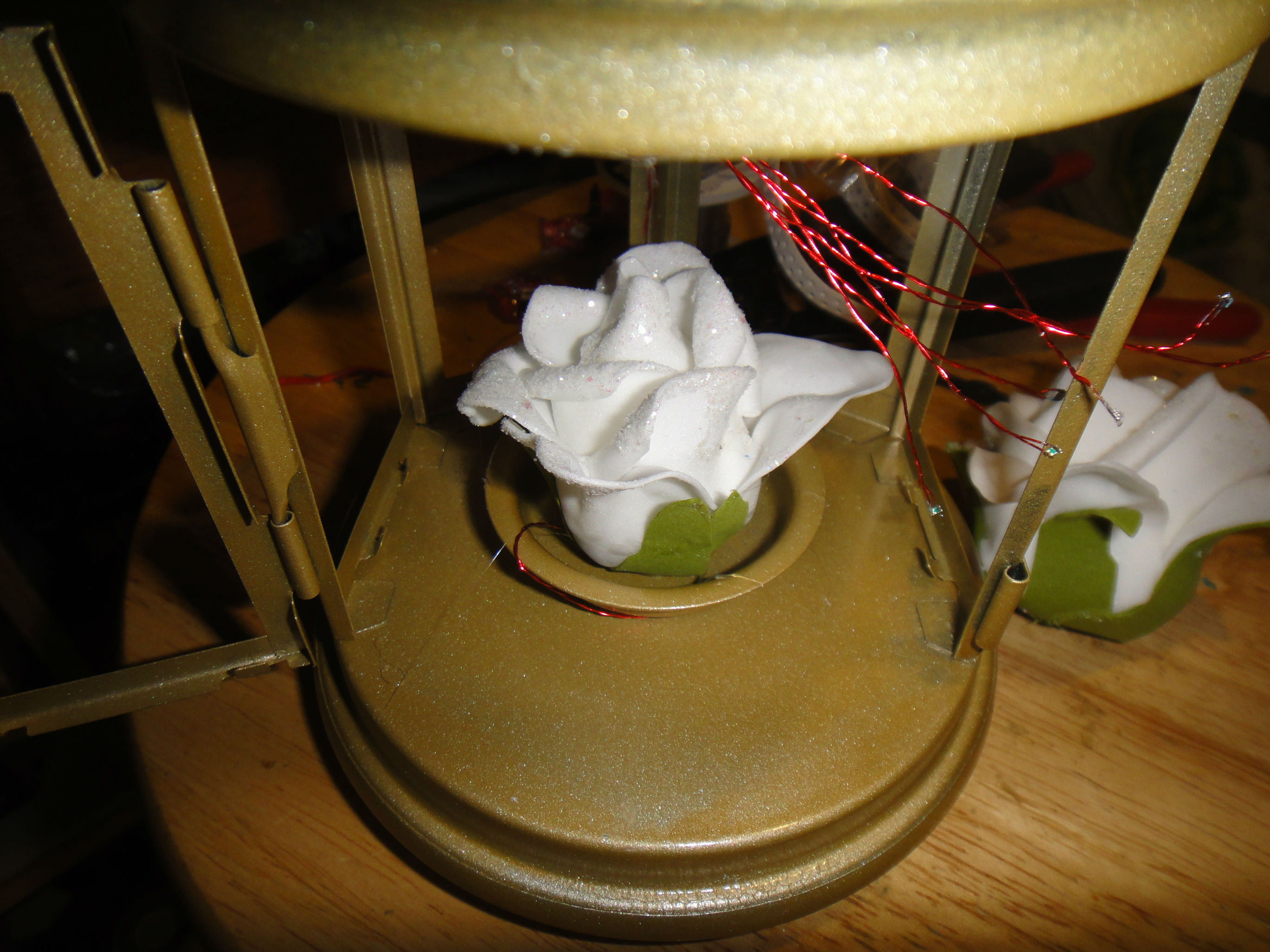

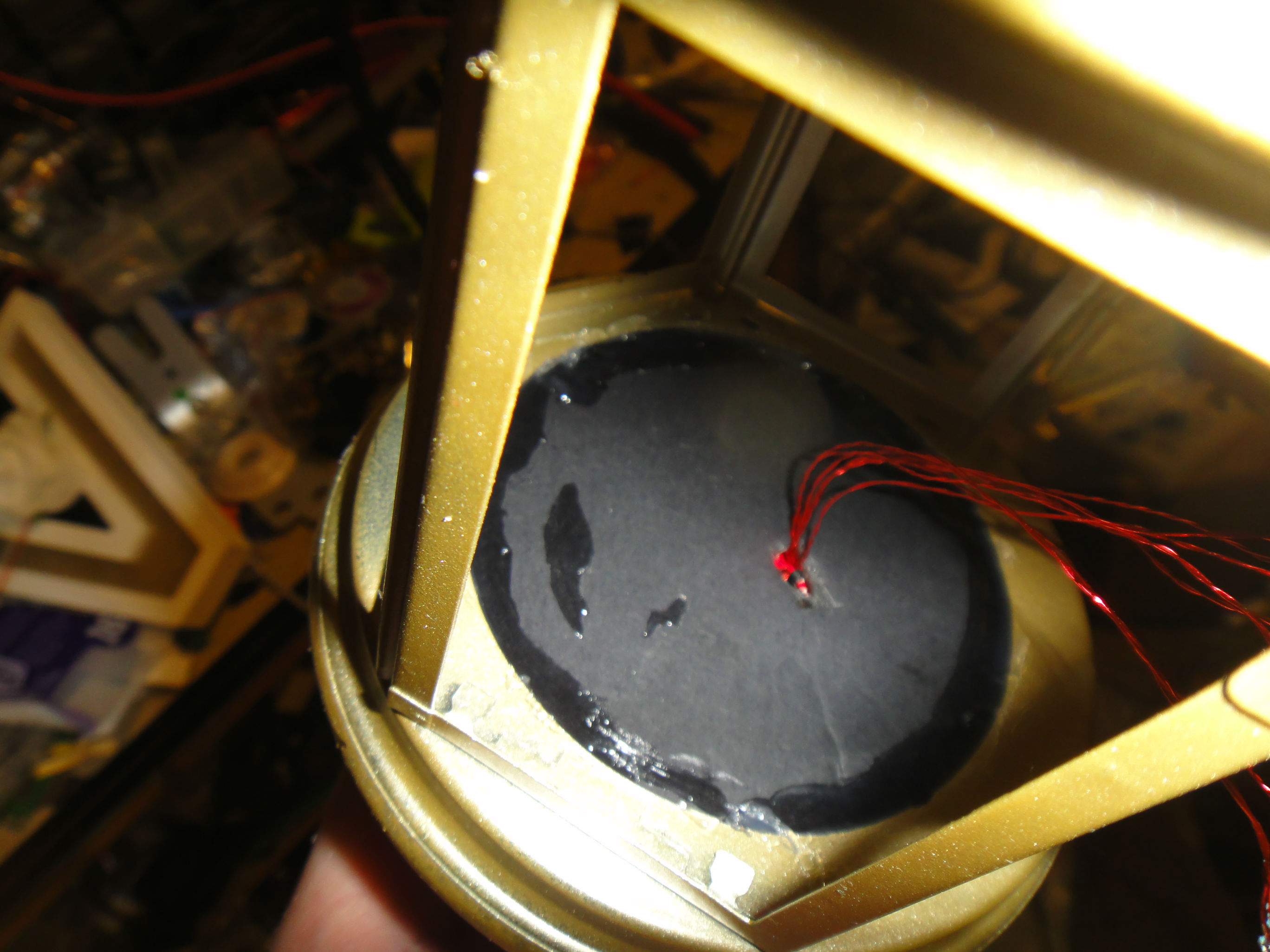

 After painting, I started glueing the LED flower that I had pre-wired in the center, ran the wire on one of the side, connected it to the mounted PCB and put the cardboard insert inside the top of the lantern making sure everything was working before sealing it by gluing the cardboad stock to the lantern's top.

lantern top

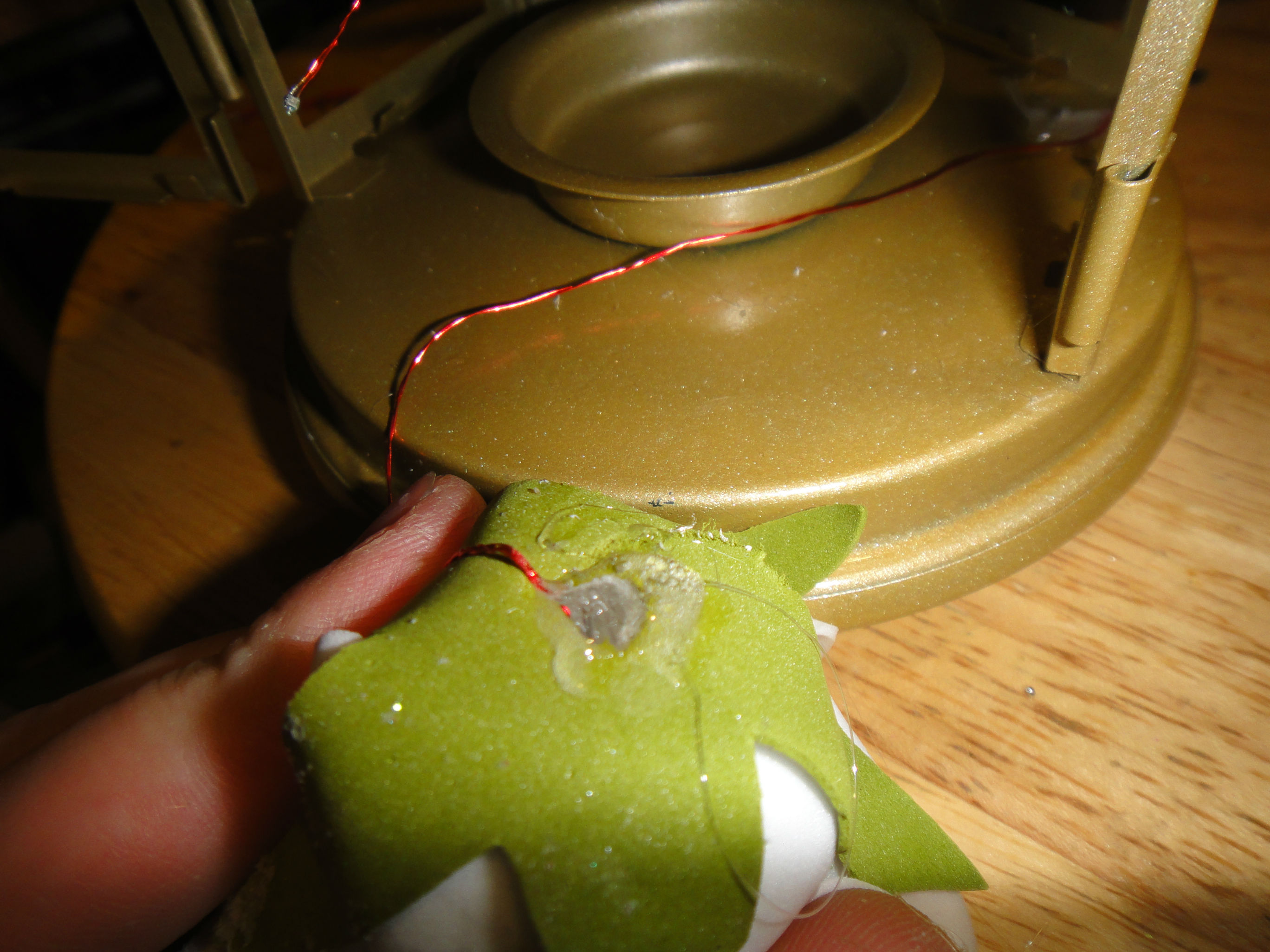

lantern led glue

lantern flower glued

I still needed something decorative around the flower, something I did not figure out until the last minute. I had a few idea ranging from pebbles, colored gravel, glass stone to simulating water with epoxy. But in the end, I went with green dried moss. It was very cheap, easy to fix inside and also very pretty in my opinion. I put strand of hot glue at the bottom of the lamp and just filled the bottom with the moss. Not only was it very pretty but it was also hiding the wires.

One thing that worried me was the fact that I had used used cellphone battery for some of them and I was really not sure how long they would last. Innitial testing pointed at around 5 hour of constant use but these results wouldn't necessarily apply to al lthe lantern considering I had different kind of battery and many of them were used in a cellphone before being salvaged for my project. In the end I was lucky as only 2 of the centerpieces ran out of battery during the evening and some of them still appear to light up month later even after being on constantly for the 6 hours of hte reception!

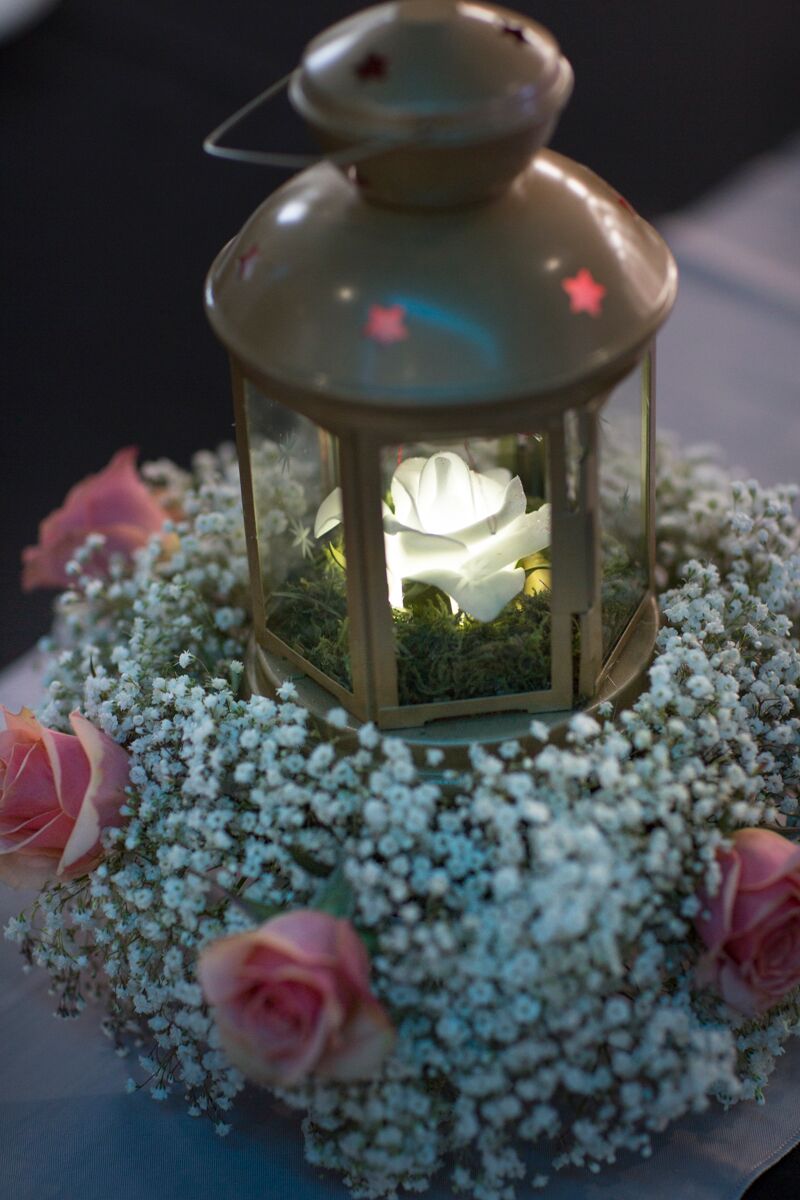

Beside not having time to add the battery charger to the centerpiece, me and my wife were very happy with the result! I think it ended up looking really nice on the tables and they were very popular with our guests. So popular that by the time we left the wedding, 17 of the 18 centerpiece had gone missing. We even saw two randoms ladies who were attending a different wedding leaving with one of them. I didn't mind so much except for the fact that I knew they would die off once the battery would run out.

lantern
